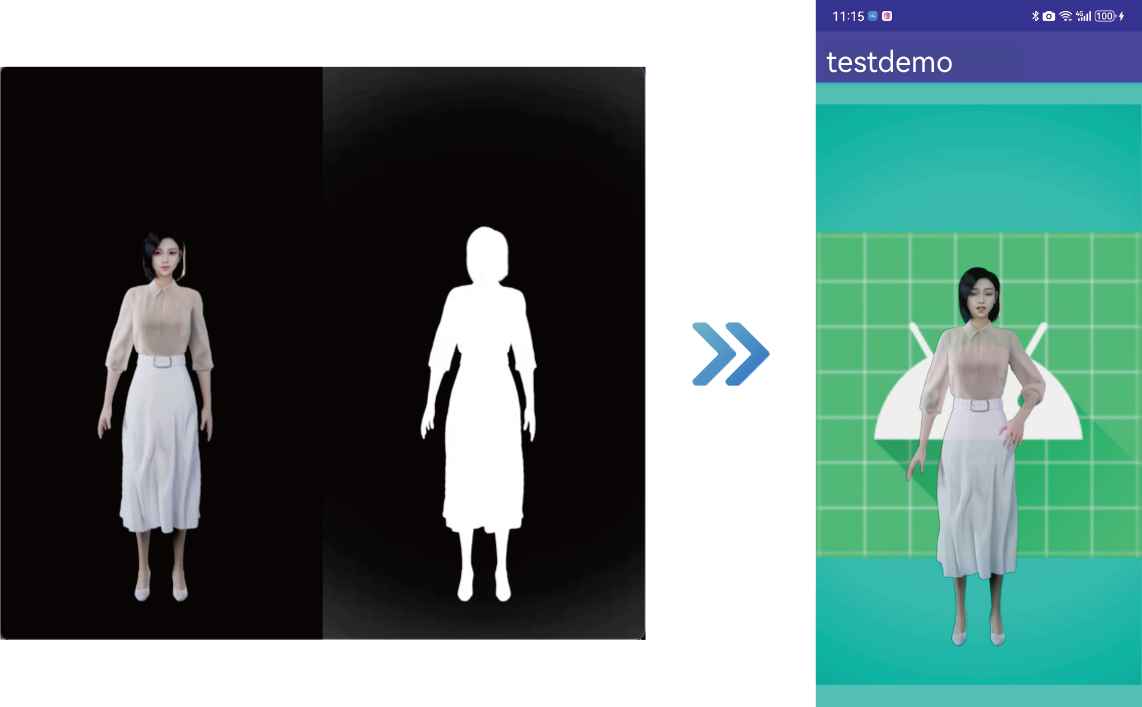

Alpha transparency effect

Consider the following sample use-cases:

• Broadcaster background replacement: The audience sees the broadcaster's background in the video replaced with a virtual scene, such as a gaming environment, a conference, or a tourist attractions.

• Animated virtual gifts: Display dynamic animations with a transparent background to avoid obscuring live content when multiple video streams are merged.

• Chroma keying during live game streaming: The audience sees the broadcaster's image cropped and positioned within the local game screen, making it appear as though the broadcaster is part of the game.

Prerequisites

Ensure that you have implemented the SDK quickstart in your project.

Implement alpha transparency

Choose one of the following methods to implement the Alpha transparency effect based on your specific business use-case.

Custom video capture use-case

The implementation process for this use-case is illustrated in the figure below:

Alpha transparency custom video capture use-case

Take the following steps to implement this logic:

1. Process the captured video frames and generate Alpha data. You can choose from the following methods:

   • Method 1: Call the pushExternalVideoFrame[2/2] method and set the alphaBuffer parameter to specify Alpha channel data for the video frames. This data matches the size of the video frames, with each pixel value ranging from 0 to 255, where 0 represents the background and 255 represents the foreground.

JavaI420Buffer javaI420Buffer = JavaI420Buffer.wrap(width, height, dataY, width, dataU, strideUV, dataV, strideUV, null);
   VideoFrame frame = new VideoFrame(javaI420Buffer, 0, timestamp);
   ByteBuffer alphaBuffer = ByteBuffer.allocateDirect(width * height);
   frame.fillAlphaData(alphaBuffer);
   rtcEngine.pushExternalVideoFrame(frame);

val javaI420Buffer = JavaI420Buffer.wrap(width, height, dataY, width, dataU, strideUV, dataV, strideUV, null)
   val frame = VideoFrame(javaI420Buffer, 0, timestamp)
   val alphaBuffer = ByteBuffer.allocateDirect(width * height)
   frame.fillAlphaData(alphaBuffer)
   rtcEngine.pushExternalVideoFrame(frame)

• Method 2: Call the pushExternalVideoFrame method and use the setAlphaStitchMode method in the VideoFrame class to set the Alpha stitching mode. Construct a VideoFrame with the stitched Alpha data.

JavaI420Buffer javaI420Buffer = JavaI420Buffer.wrap(width, height, dataY, width, dataU, strideUV, dataV, strideUV, null);
   VideoFrame frame = new VideoFrame(javaI420Buffer, 0, timestamp);
   // Set the Alpha stitching mode, in the example below, Alpha is set to be below the video image
   frame.setAlphaStitchMode(Constants.VIDEO_ALPHA_STITCH_BELOW);
   rtcEngine.pushExternalVideoFrame(frame);

val javaI420Buffer = JavaI420Buffer.wrap(width, height, dataY, width, dataU, strideUV, dataV, strideUV, null)
   val frame = VideoFrame(javaI420Buffer, 0, timestamp)
   // Set the Alpha stitching mode, in the example below, Alpha is set to be below the video image
   frame.setAlphaStitchMode(Constants.VIDEO_ALPHA_STITCH_BELOW)
   rtcEngine.pushExternalVideoFrame(frame)

2. Render the local view and implement the Alpha transparency effect.

   • Create a TextureView object for rendering the local view.
   • Call the setupLocalVideo method to set the local view:
   • Set the enableAlphaMask parameter to true to enable alpha mask rendering.
   • Set TextureView as the display window for the local video.

// Alpha data input on the sender side and Alpha transmission is enabled
    VideoEncoderConfiguration config = new VideoEncoderConfiguration(...);
    // Alpha transfer needs to be enabled when setting encoding parameters.
    config.advanceOptions.encodeAlpha = true;
    rtcEngine.setVideoEncoderConfiguration(videoEncoderConfiguration);

    // Set the view to TextureView
    TextureView textureView = new TextureView(context);
    // Enable transparent mode, allowing transparent portions in the view background and content
    textureView.setOpaque(false);
    fl_local.addView(textureView, new FrameLayout.LayoutParams(ViewGroup.LayoutParams.MATCH_PARENT, ViewGroup.LayoutParams.MATCH_PARENT));

    VideoCanvas local = new VideoCanvas(textureView, RENDER_MODE_FIT, 0);
    local.enableAlphaMask = true;
    rtcEngine.setupLocalVideo(local);

// Alpha data input on the sender side and Alpha transmission is enabled
    val config = VideoEncoderConfiguration(...)
    // Alpha transfer needs to be enabled when setting encoding parameters.
    config.advanceOptions.encodeAlpha = true
    rtcEngine.setVideoEncoderConfiguration(videoEncoderConfiguration)

    // Set the view to TextureView
    val textureView = TextureView(context)
    // Enable transparent mode, allowing transparent portions in the view background and content
    textureView.isOpaque = false
    fl_local.addView(textureView, FrameLayout.LayoutParams(ViewGroup.LayoutParams.MATCH_PARENT, ViewGroup.LayoutParams.MATCH_PARENT))

    val local = VideoCanvas(textureView, RENDER_MODE_FIT, 0)
    local.enableAlphaMask = true
    rtcEngine.setupLocalVideo(local)

3. Render the local view of the remote video stream and implement alpha transparency effects.
   • After receiving the onUserJoined callback, a TextureView object is created for rendering the remote view.
   • Call the setupRemoteVideo method to set the remote view:
   • Set the enableAlphaMask parameter to true to enable alpha mask rendering.
   • Set the display window of the remote video stream in the local video.

// Enable transparent mode at the receiving end
    TextureView textureView = new TextureView(context);
    textureView.setOpaque(false);
    fl_remote.addView(textureView, new FrameLayout.LayoutParams(ViewGroup.LayoutParams.MATCH_PARENT, ViewGroup.LayoutParams.MATCH_PARENT));

    VideoCanvas remote = new VideoCanvas(textureView, VideoCanvas.RENDER_MODE_FIT, uid);
    remote.enableAlphaMask = true;
    rtcEngine.setupRemoteVideo(remote);

// Enable transparent mode at the receiving end
    val textureView = TextureView(context)
    textureView.isOpaque = false
    fl_remote.addView(textureView, FrameLayout.LayoutParams(ViewGroup.LayoutParams.MATCH_PARENT, ViewGroup.LayoutParams.MATCH_PARENT))

    val remote = VideoCanvas(textureView, VideoCanvas.RENDER_MODE_FIT, uid)
    remote.enableAlphaMask = true
    rtcEngine.setupRemoteVideo(remote)

SDK Capture use-case

The implementation process for this use-case is illustrated in the following figure:

Alpha transparency SDK capture use-case

Take the following steps to implement this logic:

1. On the broadcasting end, call the enableVirtualBackground [2/2] method to enable the background segmentation algorithm and obtain the Alpha data for the portrait area. Set the parameters as follows:

   • enabled: Set to true to enable the virtual background.
   • backgroundSourceType: Set to BACKGROUND_NONE(0), to segment the portrait and background, and process the background as Alpha data.

VirtualBackgroundSource virtualBackgroundSource = new VirtualBackgroundSource(...);
   virtualBackgroundSource.backgroundSourceType = VirtualBackgroundSource.BACKGROUND_NONE; // Only generate alpha data, no background replacement
   SegmentationProperty segmentationProperty = new SegmentationProperty(...);
   rtcEngine.enableVirtualBackground(true, virtualBackgroundSource, segmentationProperty, sourceType);

val virtualBackgroundSource = VirtualBackgroundSource(...)
   virtualBackgroundSource.backgroundSourceType = VirtualBackgroundSource.BACKGROUND_NONE // Only generate alpha data, no background replacement
   val segmentationProperty = SegmentationProperty(...)
   rtcEngine.enableVirtualBackground(true, virtualBackgroundSource, segmentationProperty, sourceType)

2. Call setVideoEncoderConfiguration on the broadcasting end to set the video encoding property and set encodeAlpha to true. Then the Alpha data will be encoded and sent to the remote end.

VideoEncoderConfiguration videoEncoderConfiguration = new VideoEncoderConfiguration(...);
  videoEncoderConfiguration.advanceOptions = new VideoEncoderConfiguration.AdvanceOptions(...);
  videoEncoderConfiguration.advanceOptions.encodeAlpha = true;
  rtcEngine.setVideoEncoderConfiguration(videoEncoderConfiguration);

val videoEncoderConfiguration = VideoEncoderConfiguration(...)
  videoEncoderConfiguration.advanceOptions = VideoEncoderConfiguration.AdvanceOptions(...)
  videoEncoderConfiguration.advanceOptions.encodeAlpha = true
  rtcEngine.setVideoEncoderConfiguration(videoEncoderConfiguration)

3. Render the local and remote views and implement the Alpha transparency effect. See the steps in the Custom Video Capture use-case for details.

Raw video data use-case

The implementation process for this use-case is illustrated in the following figure:

Alpha transparency raw video data use-case

Take the following steps to implement this logic:

1. Call the registerVideoFrameObserver method to register a raw video frame observer and implement the corresponding callbacks as required.

// Register IVideoFrameObserver
  public class MyVideoFrameObserver implements IVideoFrameObserver {
    @Override
    public boolean onRenderVideoFrame(String channelId, int uId, VideoFrame videoFrame) {
      // ...
      return false;
    }

    @Override
    public boolean onCaptureVideoFrame(int type, VideoFrame videoFrame) {
      // ...
      return false;
    }

    @Override
    public boolean onPreEncodeVideoFrame(int type, VideoFrame videoFrame) {
      // ...
      return false;
    }
  }
  MyVideoFrameObserver observer = new MyVideoFrameObserver();
  rtcEngine.registerVideoFrameObserver(observer);

// Register IVideoFrameObserver
  class MyVideoFrameObserver : IVideoFrameObserver {
    override fun onRenderVideoFrame(channelId: String, uId: Int, videoFrame: VideoFrame): Boolean {
      // ...
      return false
    }

    override fun onCaptureVideoFrame(type: Int, videoFrame: VideoFrame): Boolean {
      // ...
      return false
    }

    override fun onPreEncodeVideoFrame(type: Int, videoFrame: VideoFrame): Boolean {
      // ...
      return false
    }
  }
  val observer = MyVideoFrameObserver()
  rtcEngine.registerVideoFrameObserver(observer)

2. Use the onCaptureVideoFrame callback to obtain the captured video data and pre-process it as needed. You can modify the Alpha data or directly add Alpha data.

public boolean onCaptureVideoFrame(int type, VideoFrame videoFrame) {
    // Modify Alpha data or directly add Alpha data
    ByteBuffer alphaBuffer = videoFrame.getAlphaBuffer();
    // ...
    videoFrame.fillAlphaData(byteBuffer);
    return false;
  }

override fun onCaptureVideoFrame(type: Int, videoFrame: VideoFrame): Boolean {
    // Modify Alpha data or directly add Alpha data
    val alphaBuffer = videoFrame.alphaBuffer
    // ...
    videoFrame.fillAlphaData(byteBuffer)
    return false
  }

3. Use the onPreEncodeVideoFrame callback to obtain the local video data before encoding, and modify or directly add Alpha data as needed.

public boolean onPreEncodeVideoFrame(int type, VideoFrame videoFrame) {
    // Modify Alpha data or directly add Alpha data
    ByteBuffer alphaBuffer = videoFrame.getAlphaBuffer();
    // ...
    videoFrame.fillAlphaData(byteBuffer);
    return false;
  }

override fun onPreEncodeVideoFrame(type: Int, videoFrame: VideoFrame): Boolean {
    // Modify Alpha data or directly add Alpha data
    val alphaBuffer = videoFrame.alphaBuffer
    // ...
    videoFrame.fillAlphaData(byteBuffer)
    return false
  }

4. Use the onRenderVideoFrame callback to obtain the remote video data before rendering it locally. Modify the Alpha data, add Alpha data directly, or render the video image yourself based on the obtained Alpha data.

public boolean onRenderVideoFrame(int type, VideoFrame videoFrame) {
    // Modify Alpha data, directly add Alpha data, or render the video image yourself based on the obtained Alpha data
    ByteBuffer alphaBuffer = videoFrame.getAlphaBuffer();
    // ...
    videoFrame.fillAlphaData(byteBuffer);
    return false;
  }

override fun onRenderVideoFrame(type: Int, videoFrame: VideoFrame): Boolean {
    // Modify Alpha data, directly add Alpha data, or render the video image yourself based on the obtained Alpha data
    val alphaBuffer = videoFrame.alphaBuffer
    // ...
    videoFrame.fillAlphaData(byteBuffer)
    return false
  }

Development notes

• Implement the transparency properties of the app window yourself and handle the transparency relationship when multiple windows are stacked on top of each other (achieved by adjusting the zOrder of the window).

• On Android, only TextureView and SurfaceView are supported when setting the view due to system limitations.

Reference

This section contains content that completes the information on this page, or points you to documentation that explains other aspects to this product.

API reference

• VideoFrame
• pushExternalVideoFrame [2/2]
• setupLocalVideo
• setupRemoteVideo
• enableVirtualBackground
• registerVideoFrameObserver
• onCaptureVideoFrame
• onPreEncodeVideoFrame
• onRenderVideoFrame

Consider the following sample use-cases:

• Broadcaster background replacement: The audience sees the broadcaster's background in the video replaced with a virtual scene, such as a gaming environment, a conference, or a tourist attractions.

• Animated virtual gifts: Display dynamic animations with a transparent background to avoid obscuring live content when multiple video streams are merged.

• Chroma keying during live game streaming: The audience sees the broadcaster's image cropped and positioned within the local game screen, making it appear as though the broadcaster is part of the game.

Prerequisites

Ensure that you have implemented the SDK quickstart in your project.

Implement alpha transparency

Development notes

• Implement the transparency properties of the app window yourself and handle the transparency relationship when multiple windows are stacked on top of each other (achieved by adjusting the zOrder of the window).

• For iOS, set opaque to false in the view's layer property when setting up the view.

• For macOS, You don't need to additionally set the transparency properties of the window. Follow the settings described for iOS.

Consider the following sample use-cases:

• Broadcaster background replacement: The audience sees the broadcaster's background in the video replaced with a virtual scene, such as a gaming environment, a conference, or a tourist attractions.

• Animated virtual gifts: Display dynamic animations with a transparent background to avoid obscuring live content when multiple video streams are merged.

• Chroma keying during live game streaming: The audience sees the broadcaster's image cropped and positioned within the local game screen, making it appear as though the broadcaster is part of the game.

Prerequisites

Ensure that you have implemented the SDK quickstart in your project.

Implement alpha transparency

Development notes

• Implement the transparency properties of the app window yourself and handle the transparency relationship when multiple windows are stacked on top of each other (achieved by adjusting the zOrder of the window).

• For iOS, set opaque to false in the view's layer property when setting up the view.

• For macOS, You don't need to additionally set the transparency properties of the window. Follow the settings described for iOS.

Consider the following sample use-cases:

• Broadcaster background replacement: The audience sees the broadcaster's background in the video replaced with a virtual scene, such as a gaming environment, a conference, or a tourist attractions.

• Animated virtual gifts: Display dynamic animations with a transparent background to avoid obscuring live content when multiple video streams are merged.

• Chroma keying during live game streaming: The audience sees the broadcaster's image cropped and positioned within the local game screen, making it appear as though the broadcaster is part of the game.

Prerequisites

Ensure that you have implemented the SDK quickstart in your project.

Implement alpha transparency

Development notes

• Implement the transparency properties of the app window yourself and handle the transparency relationship when multiple windows are stacked on top of each other (achieved by adjusting the zOrder of the window).

• For Windows, create a separate window using CreateWindowEx when creating the project and set the High Transparency property. If the target window is a child window, you need to additionally specify the WS_POPUP property.

Consider the following sample use-cases:

• Broadcaster background replacement: The audience sees the broadcaster's background in the video replaced with a virtual scene, such as a gaming environment, a conference, or a tourist attractions.

• Animated virtual gifts: Display dynamic animations with a transparent background to avoid obscuring live content when multiple video streams are merged.

• Chroma keying during live game streaming: The audience sees the broadcaster's image cropped and positioned within the local game screen, making it appear as though the broadcaster is part of the game.

Prerequisites

Ensure that you have implemented the SDK quickstart in your project.

Implement alpha transparency

Choose one of the following methods to implement the Alpha transparency effect based on your specific business use-case.

When using the SDK to capture video frames, you can achieve the Alpha transparency effect in the following ways:

Alpha transparency use-case

Enable virtual background

Call enableVirtualBackground on the host to enable the background segmentation algorithm and get the alpha data of the portrait area. Set the following parameters:

• enabled: Set to true to enable virtual background.
• background_source_type in backgroundSource: Set to BackgroundNone. This separates the portrait and background and the background is processed as Alpha data.

// Initialize the RtcEngine object
const rtcEngine = createAgoraRtcEngine();

// Enable virtual background
rtcEngine.enableVirtualBackground(
  true,
  backgroundSource,
  { modelType: SegModelType.SegModelAi },
  { background_source_type: BackgroundSourceType.BackgroundNone }
);

Set video encoding properties

Call setVideoEncoderConfiguration on the host to set the video encoding properties. Set encodeAlpha to true to encode the alpha data and send to the remote end.

rtcEngine.setVideoEncoderConfiguration({advanceOptions: {encodeAlpha: true}});

Enable Alpha rendering

1. Use the RtcSurfaceView component to create local and remote views.

2. In the canvas parameter of the RtcRenderViewProps property, set enableAlphaMask of the VideoCanvas to true to enable alpha mask rendering and alpha transparency effects.

   <RtcSurfaceView
     canvas={{ uid: 0, enableAlphaMask: true }}
     style={styles.videoView}
   />

Consider the following sample use-cases:

• Broadcaster background replacement: The audience sees the broadcaster's background in the video replaced with a virtual scene, such as a gaming environment, a conference, or a tourist attractions.

• Animated virtual gifts: Display dynamic animations with a transparent background to avoid obscuring live content when multiple video streams are merged.

• Chroma keying during live game streaming: The audience sees the broadcaster's image cropped and positioned within the local game screen, making it appear as though the broadcaster is part of the game.

Prerequisites

Ensure that you have implemented the SDK quickstart in your project.

Implement alpha transparency

Choose one of the following methods to implement the alpha transparency effect based on your specific business use-case.

Custom video capture use-case

The following figure illustrates the implementation process for this use-case:

Alpha transparency custom video capture use-case

Agora provides the following options to push self-captured video frames with alpha information to the SDK for publishing to the channel. Choose the method that best fits your needs.

Set alpha information for video frames

Refer to the following steps to process the self-captured video data, push the self-captured video stream within the channel, and set the alpha information for each frame individually to realize dynamic visual effects. The following sample code uses the following picture as an example:

1. Process texture data. Extract and convert the color data of the Texture2D object into two byte arrays, one containing the RGBA data and the other containing the alpha channel data for subsequent processing and transmission.

   // The Read/Write enable property is set to true and bound to the TextureWithAlphaBuffer variable
   public Texture2D TextureWithAlphaBuffer;
   private byte[] _rgbaData = null;
   private byte[] _alphaData = null;
   private int _textureWidth;
   private int _textureHeight;
   // Customized video track IDs
   private uint _videoTrackId = 0;

   // Convert color data from the Color32 array to rgbaData and alphaData arrays
   private void ConvertColor32(Color32[] colors, byte[] rgbaData, byte[] alphaData)
   {
     int i = 0;
     int l = 0;
     foreach (var color in colors)
     {
       rgbaData[i++] = color.r;
       rgbaData[i++] = color.g;
       rgbaData[i++] = color.b;
       rgbaData[i++] = color.a;

       alphaData[l++] = color.a;
     }
   }

   // Read the color data from the texture and initialize the _rgbaData and _alphaData arrays, as well as record the width and height of the texture
   public void InitTextureDataWithAlphaBuffer()
   {
     Color32[] color32s = TextureWithAlphaBuffer.GetPixels32(0);
     _rgbaData = new byte[color32s.Length * 4];
     _alphaData = new byte[color32s.Length];
     ConvertColor32(color32s, _rgbaData, _alphaData);
     _textureWidth = TextureWithAlphaBuffer.width;
     _textureHeight = TextureWithAlphaBuffer.height;
     this.Log.UpdateLog(string.Format("AlphaBuffer width: {0}, height: {1}", _textureWidth, _textureHeight));
   }

2. Configure the video encoding parameters to send alpha data to the remote end. Call SetVideoEncoderConfiguration to set the video encoding properties and set encodeAlpha to true to encode and send alpha data to the remote end.

3. Create a video track for posting custom captured video to the channel. Call CreateCustomVideoTrack to create a custom video track.

4. Call JoinChannel[2/2] to join the channel and set the channel media options:

   • Set customVideoTrackId to the video track ID obtained using CreateCustomVideoTrack.
   • Set publishCameraTrack to false to stop publishing the video stream captured by the camera.
   • Set publishCustomVideoTrack to true to publish the custom captured video stream.

   Refer to the following sample code:

   public void OnStartPushVideoFrameWithAlphaBuffer()
   {
     // Read RGBA data and alpha data from an image
     InitTextureDataWithAlphaBuffer();
     // Set video encoding properties
     VideoEncoderConfiguration videoEncoderConfiguration = new VideoEncoderConfiguration();
     videoEncoderConfiguration.dimensions.width = _textureWidth;  videoEncoderConfiguration.dimensions.height = _textureHeight;
     // Set the Transmit Code alpha Data
     videoEncoderConfiguration.advanceOptions.encodeAlpha = true;
     RtcEngine.SetVideoEncoderConfiguration(videoEncoderConfiguration);
     // Create custom video tracks for posting custom captured video streams within the channel
     _videoTrackId = RtcEngine.CreateCustomVideoTrack();
     // Set Channel Media Options
     var options = new ChannelMediaOptions();
     // No release of video streams captured by cameras
     options.publishCameraTrack.SetValue(false);
     // Publish audio streams captured by microphones
     options.publishMicrophoneTrack.SetValue(true);
     // Publish custom captured video streams
     options.publishCustomVideoTrack.SetValue(true);
     // Set customVideoTrackId to the video track ID you returned when calling the CreateCustomVideoTrack method.
     options.customVideoTrackId.SetValue(_videoTrackId);
     // Join the channel.
     RtcEngine.JoinChannel(_token, _channelName, 0, options)
     InvokeRepeating("UpdateForPushVideoFrameWithAlphaBuffer", 0.1f, 0.1f);
   }

5. Push a custom captured video stream to the SDK. Call the PushVideoFrame method to push the video frame and set the alpha data for the video frame. Set the alpha channel data for the video frame by setting the alphaBuffer or fillAlphaBuffer parameter.

   • alphaBuffer: Alpha channel data. This data is consistent with the size of the video frame, and each pixel point takes the value in the range of [0,255], where 0 represents the background; 255 represents the foreground (portrait).

   • fillAlphaBuffer: When set to true, the SDK can extracts and fills the alpha channel data automatically, and you don't need to additionally set an alphaBuffer. fillAlphaBuffer parameter currently only supports video data in BGRA or RGBA format.

public void UpdateForPushVideoFrameWithAlphaBuffer()
{
  var timetick = System.DateTime.Now.Ticks / 10000;
  ExternalVideoFrame externalVideoFrame = new ExternalVideoFrame();
  // Video buffer type is raw data
  externalVideoFrame.type = VIDEO_BUFFER_TYPE.VIDEO_BUFFER_RAW_DATA;
  // Video pixels in RGBA format
  externalVideoFrame.format = VIDEO_PIXEL_FORMAT.VIDEO_PIXEL_RGBA;
  externalVideoFrame.buffer = _rgbaData;
  externalVideoFrame.alphaStitchMode = ALPHA_STITCH_MODE.NO_ALPHA_STITCH
  externalVideoFrame.alphaBuffer = null;
  // Extracts and fills alpha channel data, currently only available for video data in RGBA or BGRA format.
  externalVideoFrame.fillAlphaBuffer = true;
  // Extracts and fills alpha channel data, currently only available for video data in RGBA or BGRA format.
  //externalVideoFrame.alphaBuffer = _alphaData;
  //externalVideoFrame.fillAlphaBuffer = false
  externalVideoFrame.stride = _textureWidth;
  externalVideoFrame.height = _textureHeight;
  externalVideoFrame.rotation = 180;
  externalVideoFrame.timestamp = timetick;
  // Push custom captured video to the SDK
  var ret = RtcEngine.PushVideoFrame(externalVideoFrame,
  _videoTrackId);
  Debug.Log("PushVideoFrame ret = " + ret + " time: " + timetick);
}

Merge video data and alpha data

Refer to the following steps to merge the captured video data with the alpha channel data and push the combined video data to the SDK for publishing to the channel. The following steps show how to integrate the alpha channel data with the video data.

1. Merge the captured video data with the alpha data.

   public void InitTextureDataWithAlphaStitchMode()
   {
     // Read raw texture data
     Color32[] color32s = TextureWithAlphaBuffer.GetPixels32(0);

     // Get the width and height of the original texture
     var width = TextureWithAlphaBuffer.width;
     var height = TextureWithAlphaBuffer.height;

     // Create a new texture that is twice the height of the original texture.
     TextureWithAlphaStitchMode = new Texture2D(width, height * 2, TextureFormat.RGBA32, false);

     // Initialize a new color array to store the spliced pixel data
     Color32[] newColor32s = new Color32[color32s.Length * 2];

     // Copy the original color data to the top half of the new color array  Array.Copy(color32s, newColor32s, color32s.Length);

     // Splice the alpha channel data into the lower half of the new color array
     for (int i = color32s.Length; i < newColor32s.Length; i++)  {
       newColor32s[i].r = color32s[i - color32s.Length].a;
       newColor32s[i].g = newColor32s[i].r;
       newColor32s[i].b = newColor32s[i].r;
       newColor32s[i].a = 255;
     }

     // Apply the new color array to the new texture
     TextureWithAlphaStitchMode.SetPixels32(newColor32s);  TextureWithAlphaStitchMode.Apply();

     // Convert color data and stores it in _rgbaData and _alphaData arrays
     _rgbaData = new byte[newColor32s.Length * 4];
     _alphaData = new byte[newColor32s.Length];
     ConvertColor32(newColor32s, _rgbaData, _alphaData);

     // Update texture width and height
     _textureWidth = TextureWithAlphaStitchMode.width;
     _textureHeight = TextureWithAlphaStitchMode.height;
     this.Log.UpdateLog(string.Format("AlphaStitchMode width: {0}, height: {1}", _textureWidth, _textureHeight));

     // Bind the new texture to the RawImage component in the UI.
     GameObject.Find("RawImage").GetComponent<RawImage>().texture = TextureWithAlphaStitchMode;
     GameObject.Find("RawImage").GetComponent<RectTransform>().sizeDelta = new Vector2(_textureWidth, _textureHeight);
   }

2. Configure the video encoding parameters to send alpha data to the remote end. Call SetVideoEncoderConfiguration to set the video encoding properties and set encodeAlpha to true to encode and send alpha data to the remote end.

3. Create a video track for posting custom captured video to the channel. Call CreateCustomVideoTrack to create a custom video track.

4. Call JoinChannel[2/2] to join the channel and set the channel media options:

   • Set customVideoTrackId to the video track ID obtained by calling CreateCustomVideoTrack.
   • Set publishCameraTrack to false to stop publishing the video stream captured by the camera.
   • Set publishCustomVideoTrack to true to publish a custom captured video stream.

   The sample code is as follows:

   public void OnStartPushVideoFrameWithAlphaStitchMode()
   {
     InitTextureDataWithAlphaStitchMode();
     VideoEncoderConfiguration videoEncoderConfiguration = new VideoEncoderConfiguration();
     videoEncoderConfiguration.dimensions.width = _textureWidth;
     // The actual height sent is half the height of the stitched texture
     videoEncoderConfiguration.dimensions.height = _textureHeight / 2;
     // Encodes and sends Alpha data to the remote end
     videoEncoderConfiguration.advanceOptions.encodeAlpha = true;
     // Set video encoding properties
     RtcEngine.SetVideoEncoderConfiguration(videoEncoderConfiguration);
     // Create custom video tracks for posting custom captured video streams within the channel
     _videoTrackId = RtcEngine.CreateCustomVideoTrack();
     var options = new ChannelMediaOptions();
     // Set not to publish video streams captured by the camera
     options.publishCameraTrack.SetValue(false);
     // Setting Up Audio Streams for Publishing Microphone Capture
     options.publishMicrophoneTrack.SetValue(true);
     // Setting up to publish custom captured video streams
     options.publishCustomVideoTrack.SetValue(true);
     // Set customVideoTrackId to the video track ID you returned when calling the CreateCustomVideoTrack method.
     options.customVideoTrackId.SetValue(_videoTrackId);
     // Join the channel
     RtcEngine.JoinChannel(_token, _channelName, 0, options);
     InvokeRepeating("UpdateForPushVideoFrameWithAlphaStitchMode", 0.1f, 0.1f);
   }

5. Push the merged video frame to the SDK. Call the PushVideoFrame method and set the relative position of the alpha data and the video frame with the alphaStitchMode parameter.

Refer to the following sample code:

public void UpdateForPushVideoFrameWithAlphaStitchMode()
{
  var timetick = System.DateTime.Now.Ticks / 10000;
  ExternalVideoFrame externalVideoFrame = new ExternalVideoFrame();
  // Video buffer type is raw data
  externalVideoFrame.type = VIDEO_BUFFER_TYPE.VIDEO_BUFFER_RAW_DATA;
  // Video pixels in RGBA format
  externalVideoFrame.format = VIDEO_PIXEL_FORMAT.VIDEO_PIXEL_RGBA;
  externalVideoFrame.buffer = _rgbaData;
  // highlight-start
  // Since Unity texture coordinates and SDK coordinates are different, if you need to splice the alpha data to the top of the original data, you need to set the splice position to the bottom when the SDK reads it here.
  externalVideoFrame.alphaStitchMode = ALPHA_STITCH_MODE.ALPHA_STITCH_BELOW;
  // highlight-end
  externalVideoFrame.stride = _textureWidth;
  externalVideoFrame.height = _textureHeight;
  externalVideoFrame.rotation = 180;
  externalVideoFrame.timestamp = timetick;
  // Push video frames to SDK
  var ret = RtcEngine.PushVideoFrame(externalVideoFrame, _videoTrackId);
  Debug.Log("PushVideoFrame ret = " + ret + " time: " + timetick);
}

SDK Capture use-case

The following figure illustrates the implementation process for this use-case:

Alpha transparency SDK capture use-case

Take the following steps to implement this logic:

1. When rendering local video using the VideoSurface component, call SetLocalVideoDataSourcePosition to get the position of the video frame. Setting the position to POSITION_POST_CAPTURER means getting the video frame after the local video capture is done.

   // Set the local video frame position to POSITION_POST_CAPTURER
   RtcEngine.SetLocalVideoDataSourcePosition(VIDEO_MODULE_POSITION.POSITION_POST_CAPTURER);

2. Call EnableVirtualBackground on the host to enable the background segmentation algorithm and get the alpha data of the portrait area. The recommended parameters are as follows:

   • enabled: Set to true to enable virtual background.
   • backgroundSourceType: Set to BACKGROUND_NONE to split the portrait and background and process the background as an alpha channel.

var source = new VirtualBackgroundSource();
source.background_source_type = BACKGROUND_SOURCE_TYPE.BACKGROUND_NONE;
var segproperty = new SegmentationProperty();
var nRet = RtcEngine.EnableVirtualBackground(true, source, segproperty, MEDIA_SOURCE_TYPE.PRIMARY_CAMERA_SOURCE);
this.Log.UpdateLog("EnableVirtualBackground true :" + nRet);

3. Call SetVideoEncoderConfiguration to set encodeAlpha to true. This encodes the alpha information and sends it to the remote end. Call JoinChannel[2/2] to join the channel.

   VideoEncoderConfiguration videoEncoderConfiguration = new VideoEncoderConfiguration();
   videoEncoderConfiguration.advanceOptions.encodeAlpha = true;
   RtcEngine.SetVideoEncoderConfiguration(videoEncoderConfiguration);
   RtcEngine.JoinChannel(_token, _channelName, "", 0);

4. Render views with alpha transparency effects using the VideoSurfaceYUVA component.

   private VideoSurface MakeImageSurface(string goName)
   {
     // ......
     // Render with VideoSurfaceYUVA
     VideoSurface videoSurface = go.AddComponent<VideoSurfaceYUVA>();
     return videoSurface;
   }
