Package architecture

TEN packages are the fundamental building blocks of the TEN framework, providing a standardized structure for organizing applications, extensions, and system components. This guide explains the TEN package architecture, lifecycle management, and deployment strategies.

Understanding TEN packages is essential for effective development with the framework. Packages define how code, configuration, and dependencies are organized, while the extension lifecycle provides a predictable pattern for component initialization, operation, and cleanup across different programming languages.

Whether you're building standalone extensions, complete applications, or contributing to the framework itself, this guide covers the package structure and lifecycle concepts you need to develop robust TEN-based solutions.

Package structure and types

Common package structure

Every TEN package follows a standardized directory structure that ensures consistency across different package types and programming languages:

.
├── bin/
├── src/
├── manifest.json
├── manifest-lock.json
├── property.json
└── ten_packages/
   ├── extension/
   │   ├── <extension_foo>/
   │   └── <extension_bar>/
   ├── extension_group/
   │   └── <extension_group_x>/
   ├── protocol/
   │   └── <protocol_a>/
   └── system/
       ├── <system_package_1>/
       └── <system_package_2>/

Language-specific files:

C++: BUILD.gn file for the ten_gn build system
Go: go.mod and go.sum files for dependency management
Python: requirements.txt file for package dependencies

Package types

TEN framework packages are organized into distinct types, each serving specific purposes in the application architecture:

App: Complete TEN applications that can run as standalone processes or embedded threads. Apps serve as containers for extensions and extension groups.
Extension: Individual functional components that implement specific business logic or capabilities. Extensions are the primary building blocks for TEN applications.
Extension group: Collections of related extensions that work together as a cohesive unit. Extension groups provide organizational structure and shared resources.
Protocol: Communication protocols that define how extensions interact and exchange messages. Protocols ensure consistent data flow between components.
System: Core framework components and runtime packages that provide essential TEN functionality. System packages include the runtime engine and fundamental services.

Each package type has specific responsibilities and usage patterns within the TEN ecosystem, allowing developers to build modular, scalable applications through composition.

App packages

Apps are containers that orchestrate extensions and extension groups to create complete TEN applications. Apps provide the runtime environment and can be deployed in multiple ways to suit different architectural needs.

Deployment modes

TEN apps have two deployment modes:

Process mode: Apps run as standalone processes, typically deployed in Docker containers for cloud environments. This mode provides complete isolation and is ideal for microservices architectures.
Thread mode: Apps run as embedded threads within existing applications. This mode enables incremental adoption of TEN without requiring complete application rewrites.

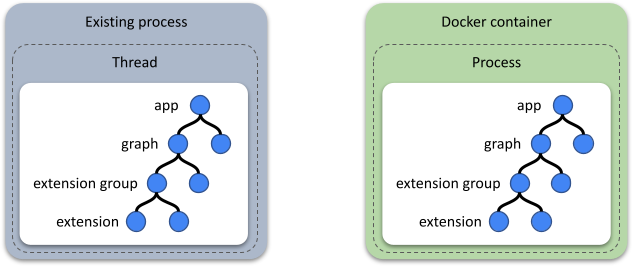

Run TEN as a process or a thread

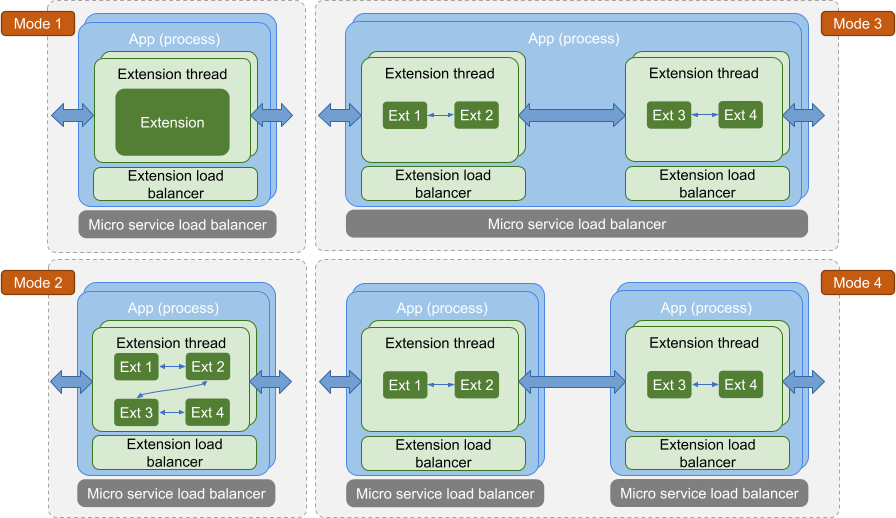

Different modes of app running

App structure

TEN apps maintain consistent folder structures across all programming languages, ensuring uniformity and predictability regardless of implementation language:

TEN package folder structure

This consistency allows developers to work with TEN apps using familiar patterns, whether building in C++, Go, Python, or other supported languages.

Extension packages

Extension packages contain individual components that implement specific functionality within TEN applications. Extensions are the core building blocks that handle business logic, data processing, and external integrations.

Extension lifecycle

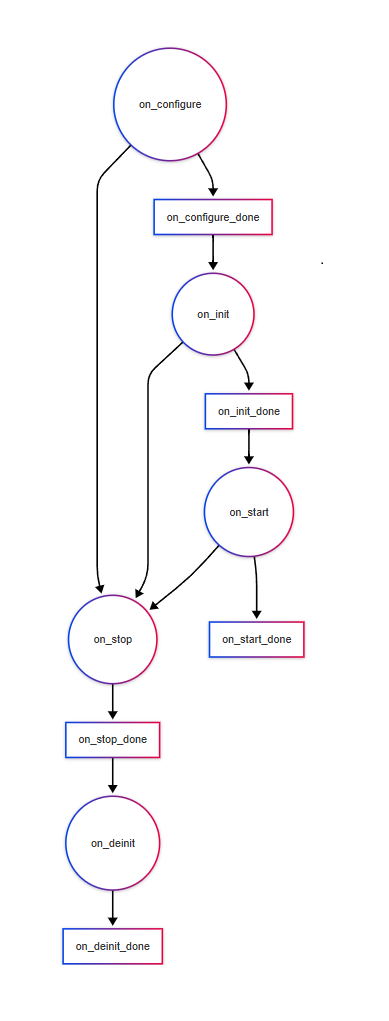

Extensions follow a predictable five-stage lifecycle that ensures proper initialization, operation, and cleanup. Each stage provides specific capabilities for message handling and inter-extension communication.

Stage	Purpose	Completion Function
`on_configure`	Set initial property values	`on_configure_done()`
`on_init`	Initialize extension resources	`on_init_done()`
`on_start`	Begin normal operation	`on_start_done()`
`on_stop`	Prepare for shutdown	`on_stop_done()`
`on_deinit`	Clean up resources	`on_deinit_done()`

You can send messages and receive command results at any lifecycle stage, enabling flexible inter-extension dependencies and communication patterns. You must call the corresponding completion function to complete each stage and advance to the next. The following diagram illustrates the extension lifecycle flow, showing how each stage transitions to its completion function and then to the next stage:

`on_configure`

Use this stage to set the initial values of your extension's properties. This allows you to use the get_property API from ten_env in other lifecycle stages to retrieve properties set during on_configure. Call on_configure_done() to mark the end of this stage.

void on_configure(ten::ten_env_t &ten_env) override {
 // Set the initial values of the extension's properties.
 ten_env.init_property_from_json(
   R"({
        "ten": {
          "uri": "msgpack://127.0.0.1:8001/",
          "log_level": 2
        }
      })", nullptr);
 ten_env.on_configure_done();
}

`on_init`

Use this stage to initialize your extension. The TEN runtime queues all incoming messages until you call on_init_done(), then delivers the queued messages once your extension is ready.

Exception: Command results from commands you send yourself are delivered immediately, since you must be prepared to handle results from your own commands.

void on_init(ten::ten_env_t &ten_env) override {
  // Initialize extension resources
  ten_env.on_init_done();
}

`on_start`

Use this stage to finalize startup operations before your extension begins receiving messages from other extensions. The TEN runtime starts delivering messages from other extensions after you call on_start_done().

void on_start(ten::ten_env_t &ten_env) override {
  // Perform startup operations
  ten_env.on_start_done();
}

`on_stop`

Use this stage to perform cleanup operations when your extension needs to stop, such as when the containing app is terminating. Call on_stop_done() to complete the shutdown process.

void on_stop(ten::ten_env_t &ten_env) override {
  // Perform cleanup operations
  ten_env.on_stop_done();
}

`on_deinit`

Use this stage for final resource cleanup. The TEN runtime will not deliver messages from other extensions during this stage since your extension's resources may no longer be fully available. Call on_deinit_done() to complete the lifecycle.

void on_deinit(ten::ten_env_t &ten_env) override {
  // Final cleanup
  ten_env.on_deinit_done();
}

Extension coordination

Extensions operate independently through their lifecycle stages with no built-in synchronization. Each extension progresses through its own lifecycle stages without waiting for other extensions. You must explicitly implement any dependencies between extensions.

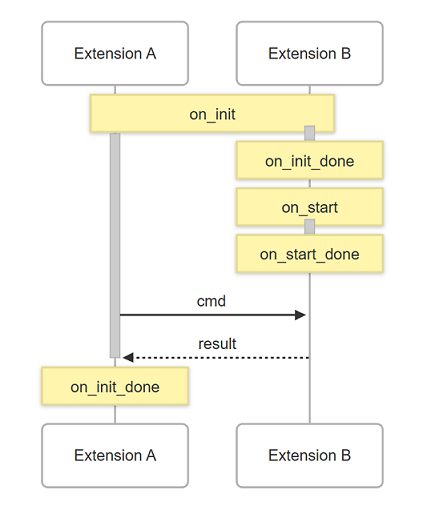

To coordinate between extensions, use message passing during lifecycle stages. For example, if extension A needs extension B to complete initialization first:

Extension A sends a command to extension B during its on_init stage
Extension B completes initialization and responds to the command
Extension A receives the response and calls on_init_done()

You can apply the same message-passing approach to coordinate extensions at any lifecycle stage.

Runtime interfaces

Extensions interact with the TEN runtime through three primary interfaces:

Lifecycle callbacks: Handle extension state transitions: on_init, on_deinit, on_start, on_stop, and on_configure.
Message receivers: Process incoming messages: on_cmd, on_data, on_audio_frame, and on_video_frame.
Message senders: Send outgoing messages: send_cmd, send_data, send_audio_frame, and send_video_frame.

These interfaces provide complete control over your extension's lifecycle and communication with other components in the TEN application.

Message handling by lifecycle stage

Each lifecycle stage has specific message handling capabilities that determine what your extension can send and receive:

on_configure to on_configure_done: Set up properties only. No message handling capabilities.
on_init to on_init_done: You can send messages and receive results from your own commands, but cannot receive messages from other extensions.
on_start to on_start_done: You can send messages and receive results from your own commands, but cannot receive messages from other extensions. Since properties are configured, you can perform actions that depend on these settings.
Normal operation (after on_start_done until on_stop): Full message handling capabilities. You can send and receive all types of messages and their results.
on_stop to on_stop_done: You can send messages and receive results from your own commands, but cannot receive messages from other extensions.
on_deinit to on_deinit_done: Similar to on_init. You can send messages and receive results from your own commands, but cannot receive messages from other extensions.

Multi-language support

You can implement extensions in C++, Go, and Python using the same conceptual approach across all languages. Once you learn extension development in one language, the concepts transfer easily to other supported languages.

Asynchronous message processing

Extensions process messages asynchronously, giving you flexibility in how and when to handle incoming data. When the TEN runtime delivers a message through callbacks like on_cmd, on_data, on_audio_frame, or on_video_frame, you can:

Process the message immediately within the callback
Delegate processing to other threads for parallel execution
Forward the message to other processes or machines for distributed processing

This asynchronous design enables full utilization of multi-core and distributed computing resources without blocking the TEN runtime.

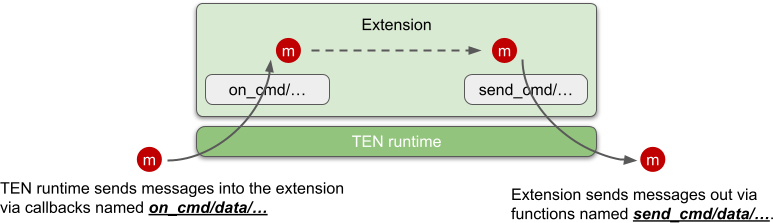

Asynchronous Message Processing

After processing completes, send results back to the TEN runtime using functions like send_cmd, send_data, send_audio_frame, or send_video_frame. You can send results at any time after processing finishes; the callback functions don't need to wait for results before returning.

Python async extensions

TEN's Python async extensions provide a powerful way to handle long-running tasks asynchronously. By integrating Python's asyncio framework, these extensions ensure that operations such as network calls or file handling are efficient and non-blocking.

To wrap existing Python code that uses asyncio into a TEN extension, use the Python async extension. A Python async extension is structured as follows:

import asyncio
from ten_runtime import AsyncExtension, AsyncTenEnv
class DefaultAsyncExtension(AsyncExtension):
   async def on_configure(self, ten_env: AsyncTenEnv) -> None:
       # Mock async operation, e.g. network, file I/O.
       await asyncio.sleep(0.5)
   async def on_init(self, ten_env: AsyncTenEnv) -> None:
       # Mock async operation, e.g. network, file I/O.
       await asyncio.sleep(0.5)
   async def on_start(self, ten_env: AsyncTenEnv) -> None:
       # Mock async operation, e.g. network, file I/O.
       await asyncio.sleep(0.5)
   async def on_deinit(self, ten_env: AsyncTenEnv) -> None:
       # Mock async operation, e.g. network, file I/O.
       await asyncio.sleep(0.5)
   async def on_cmd(self, ten_env: AsyncTenEnv, cmd: Cmd) -> None:
       cmd_json = cmd.to_json()
       ten_env.log_debug(f"DefaultAsyncExtension on_cmd: {cmd_json}")
       # Mock async operation, e.g. network, file I/O.
       await asyncio.sleep(0.5)
       # Send a new command to other extensions and wait for the result. The
       # result will be returned to the original sender.
       new_cmd = Cmd.create("hello")
       cmd_result = await ten_env.send_cmd(new_cmd)
       ten_env.return_result(cmd_result, cmd)

Each method simulates a delay using await asyncio.sleep().

Async loop for event handling

To create an async event loop to handle continuous event processing:

Create a queue using asyncio.Queue
Create an async task for event handling in on_start
Signal shutdown by putting None in the queue during on_stop

import asyncio
from ten_runtime import AsyncExtension, AsyncTenEnv
class DefaultAsyncExtension(AsyncExtension):
   def __init__(self):
       super().__init__()
       self.queue = asyncio.Queue()
       self.loop = None
   async def on_start(self, ten_env: AsyncTenEnv) -> None:
       self.loop = asyncio.get_event_loop()
       self.loop.create_task(self._consume())
   async def on_stop(self, ten_env: AsyncTenEnv) -> None:
       await self.queue.put(None)
   async def _consume(self) -> None:
       while True:
           try:
               value = await self.queue.get()
               if value is None:
                   self.ten_env.log_info("async loop exit")
                   break
               # Code for processing values retrieved from the queue.
           except Exception as e:
               self.ten_env.log_error(f"Failed to handle {e}")

Package deployment types

TEN packages come in two deployment formats:

Development packages: Include source code and build configurations for creating and modifying extensions
Release packages: Contain only compiled artifacts and runtime files for direct deployment

Development packages

Development packages are used for creating and modifying TEN components. They contain:

Complete source code
Build configurations
Development dependencies
Documentation and examples

Use development packages when you need to modify existing extensions or create new TEN components from scratch.

Release packages

Release packages are optimized for deployment and operation. They contain:

Compiled binaries and libraries
Runtime configurations
Essential dependencies only

Use release packages for production deployment where you only need to run existing functionality without modification. Release packages require no build steps and can be deployed immediately.
