Message system

Messages are the primary communication mechanism in the TEN framework, enabling extensions to exchange data, commands, and media content. The message system provides a structured, type-safe way for different components in your application to interact with each other.

The TEN message system offers several key benefits:

Type safety and validation: Each message type has defined schemas that ensure data integrity and prevent communication errors between extensions.
Asynchronous communication: Extensions can send and receive messages without blocking, enabling efficient parallel processing and responsive applications.
Clear interface definitions: Message APIs in manifest files provide explicit contracts between extensions, making it easier to understand how components interact.
Thread safety: The framework's ownership model ensures that messages can be safely passed between extensions running in different threads.

Messages in TEN work similarly to function calls in traditional programming, where message names act like function names, properties serve as parameters, and the framework handles routing and delivery between extensions.

Message types and categories

The TEN framework supports four message types, each serving different communication needs:

Command: Request-response messages that expect a result. For example, configuration requests and status queries
Data: One-way messages for streaming content, events, and application data
Video Frame: Specialized messages for video content and metadata
Audio Frame: Specialized messages for audio content and metadata

The following diagram shows this categorization:

┌── Has result (expects response)
│   └── Command
│       ├── TEN framework built-in command (name starts with `ten:`)
│       └── Custom command (name does not start with `ten:`)
└── No result (one-way communication)
   ├── Data
   │   ├── TEN framework built-in data (name starts with `ten:`)
   │   └── Custom data (name does not start with `ten:`)
   ├── Video Frame
   │   ├── TEN framework built-in video frame (name starts with `ten:`)
   │   └── Custom video frame (name does not start with `ten:`)
   └── Audio Frame
       ├── TEN framework built-in audio frame (name starts with `ten:`)
       └── Custom audio frame (name does not start with `ten:`)

The key distinction is that commands expect a response, while data, video, and audio messages are one-way communications.

Built-in vs custom messages

Built-in messages start with ten: and provide core framework functionality.
Custom messages use any other naming pattern and implement your application-specific logic.

Message handling callbacks

Extensions handle messages through specific callback methods:

OnCmd for commands
OnData for data messages
OnVideoFrame for video frames
OnAudioFrame for audio frames

Message naming and identification

The TEN framework uses message names to differentiate between messages of the same type but with different purposes. Extensions use these names to determine what actions to take when receiving messages.

Naming rules

Message names must follow these requirements:

First character must be a letter (a-z, A-Z) or underscore (_)
Subsequent characters can be letters (a-z, A-Z), digits (0-9), or underscores (_)
Names starting with ten: are reserved for framework built-in messages

Message pairing

The message pairing mechanism between extensions works like function calls in traditional programming:

Message name acts as the function name - pairing relies solely on matching names
Message properties serve as function parameters
Routing occurs when an output message from one extension matches an input message name in another extension

The framework does not support message overloading - multiple messages with the same name but different properties are not allowed.

Message flow patterns

The TEN framework supports the following message flow patterns to handle different communication scenarios:

Pattern	Description	Suitable for
One message, one result	A single command produces a single response	Simple queries that return specific information Configuration updates that need confirmation Operations with clear success/failure outcomes
One message, multiple results	A single command generates multiple responses over time	Long-running operations that provide progress updates Queries that return streaming data Operations that produce incremental results
Multiple messages	Multiple messages sent without expecting results	Event notifications and broadcasts Streaming data flows Fire-and-forget operations

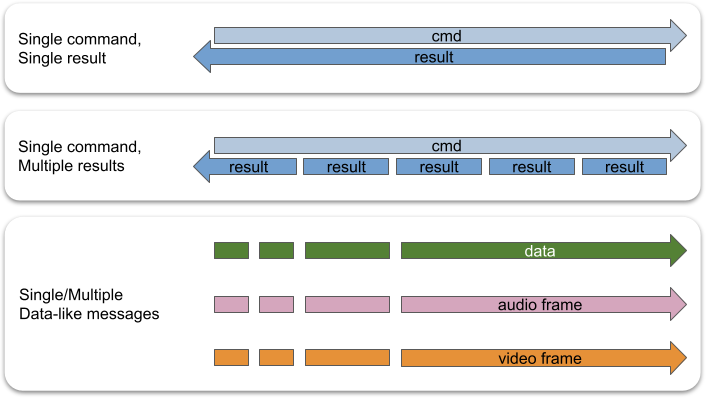

Message Flow

API field types

The manifest API includes the following message direction specifications:

cmd_in: Commands the extension can receive
cmd_out: Commands the extension can send
data_in: Data messages the extension can receive
data_out: Data messages the extension can send
video_frame_in: Video frames the extension can receive
video_frame_out: Video frames the extension can send
audio_frame_in: Audio frames the extension can receive
audio_frame_out: Audio frames the extension can send

API definition structure

Each message definition includes the message name and property schema. Following is a sample API definition:

{
 "api": {
   "cmd_in": [
     {
       "name": "process_data",
       "property": {
         "input_file": {
           "type": "string"
         },
         "quality": {
           "type": "int8"
         }
       },
       "result": {
         "property": {
           "output_path": {
             "type": "string"
           },
           "status": {
             "type": "string"
           }
         }
       }
     }
   ],
   "data_out": [
     {
       "name": "processing_progress",
       "property": {
         "percentage": {
           "type": "int8"
         },
         "current_step": {
           "type": "string"
         }
       }
     }
   ]
 }
}

Message ownership and thread safety

The TEN framework uses an ownership model to ensure thread safety and prevent data races when messages are passed between extensions. Once a message is sent, the sending extension can no longer use it.

Ownership transfer to extensions

When the TEN framework delivers a message to an extension through OnCmd, OnData, OnVideoFrame, or OnAudioFrame callbacks, ownership transfers to the receiving extension. The framework guarantees that only the receiving extension has access to the message, ensuring safety across different threads.

The extension can freely use the message but must return ownership to the framework when finished. After returning ownership, the extension must not interact with the message.

Message Processing Follows the Concept of Ownership

Ownership transfer to the framework

When an extension sends a message using APIs like SendCmd, ReturnResult, SendData, SendVideoFrame, or SendAudioFrame, ownership transfers back to the TEN framework. The sending extension can no longer access the message after successful transmission.

Resource ownership

The ownership concept extends to all resources associated with a message, including buffers and data structures. Only one extension can own these resources at a time, mirroring the message ownership to maintain safety.

Copy semantics by default

To prevent data races from multiple extensions handling the same resource simultaneously, the TEN framework uses copy semantics by default when transmitting data across boundaries. Copying ensures ownership separation and maintains safety.

Borrowing semantics

The framework also supports borrowing semantics for enhanced resource utilization while maintaining safety. Extensions can temporarily use resources without taking ownership through borrowing APIs, but must use GiveBack APIs to return borrowed resources.

When returning message ownership to the runtime, all associated borrowed resources must also be returned. If an extension fails to return borrowed resources, the runtime rejects the message. For example, SendData will fail.

{
  "ten": {
    "status_code": 200
  }
}
