Manage integrations

Agent Studio provides centralized management of credentials, MCP servers, and knowledge bases through the Integration interface. Store and reuse API keys and configuration settings for your LLM, ASR, and TTS providers across all agents, making it easy to update provider settings in one place.

Credentials​

To save your credentials for a vendor:

  1. From the left sidebar, select Integration.

  2. At the top of the page, select Credentials

  3. Click + Add Credential.

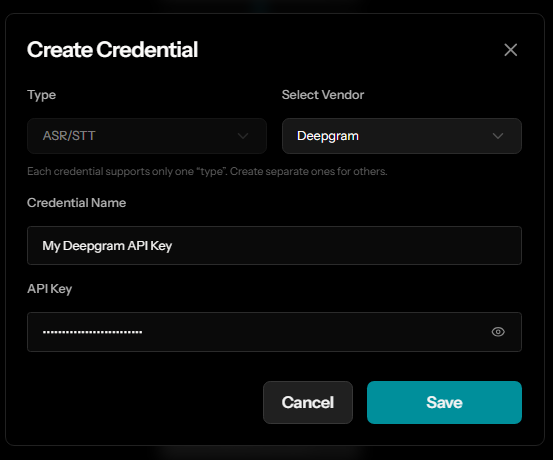

    Add credential

  4. From the Type dropdown, select ASR, LLM, or TTS.

  5. Select the Vendor from the dropdown for which you want to add the credential.

  6. Enter a descriptive name for your credential.

  7. Paste your provider API key and fill in other related parameters, if any.

  8. Click Save.

After you add a credential, you can select it from the Credential dropdown when customizing your ASR, LLM, or TTS configuration for any agent.

You can edit and delete credentials using the Actions column in the credential list.

caution

Deleting a credential affects all agents that use it. Verify that no active agents depend on the credential before deleting, or update those agents to use a different credential first.

Credential security​

Credentials stored in Integrations are:

  • Encrypted and securely stored in your Agora account
  • Only accessible to users with access to your Agora project
  • Never exposed in agent configurations or logs
Best practices
  • Use descriptive names to distinguish between development, staging, and production credentials
  • Rotate API keys regularly according to your security policies
  • Delete unused credentials to minimize security exposure

Knowledge bases​

A knowledge base provides your agent with additional context by supplying reference documents that the agent can draw on during conversations. Once created, knowledge bases can be attached to any agent from the Actions panel.

To create a knowledge base:

  1. From the left sidebar, select Integration.
  2. At the top of the page, select Knowledge Bases.
  3. Click + Add Knowledge Base. Create knowledge base
  4. Enter a Knowledge Base Name.
  5. Enter a Description.
  6. Upload one or more files by clicking Browse files or dragging and dropping files into the upload area.
  7. Click Create.
info

Supported file formats: PDF, DOCX. Maximum file size: 20 MB per file.

You can delete knowledge bases using the Actions column in the knowledge base list.

MCP servers​

MCP (Model Context Protocol) servers extend your agent's capabilities by enabling it to call tools provided by external services. Once added to Integrations, MCP servers can be attached to any agent from the Actions panel.

To add an MCP server:

  1. From the left sidebar, select Integration.
  2. At the top of the page, select MCPs.

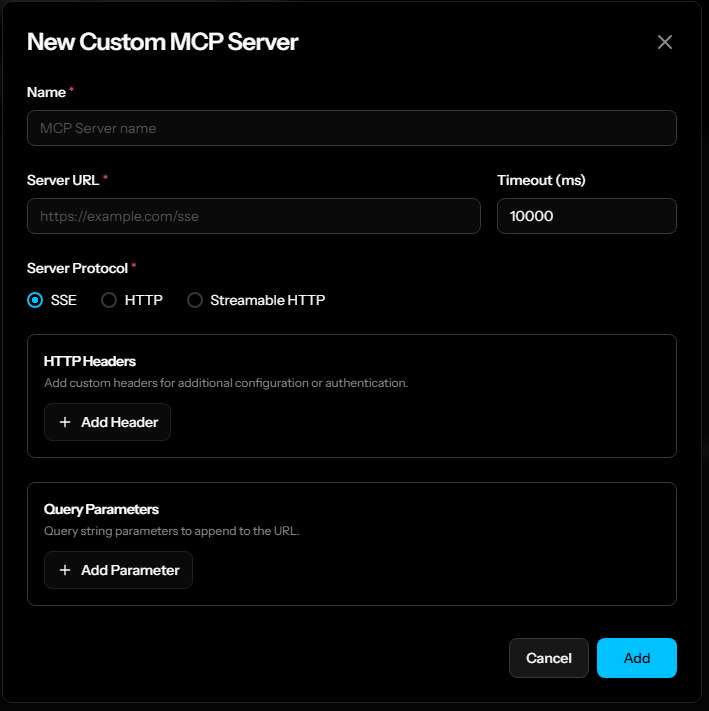

  3. Click + Add Server. Add MCP server
  4. Enter a descriptive Name for the MCP server.
  5. Enter the Server URL.
  6. Set the Timeout (ms). If the server does not respond within this duration, the agent stops waiting and continues executing.
  7. Select the Server Protocol: SSE, HTTP, or Streamable HTTP.
  8. Add HTTP Headers for authentication or additional configuration. (Optional)
  9. Add Query Parameters to append to the server URL. (Optional)
  10. Click Add.

You can edit, delete or check the status of an MCP server using the Actions column in the MCP server list.
