Custom Tools

Custom Tools let your agent call your own HTTP endpoints during a conversation. Create the tool once in Integrations, then attach it to any agent in the same project.

Use Custom Tools when you already have an HTTP API and want your agent to call it directly.

• Use a Knowledge Base for document retrieval.
• Use an MCP server when you already expose tools through MCP.
• Use a Connector when a built-in integration such as HubSpot is available.

Prerequisites

• An API reachable over http or https.
• A host URL that is not localhost or a private or internal network address.

Create a custom tool

1. In the navigation sidebar, select Integrations.
2. Switch to the Custom Tools tab.
3. Select Add Custom Tool.

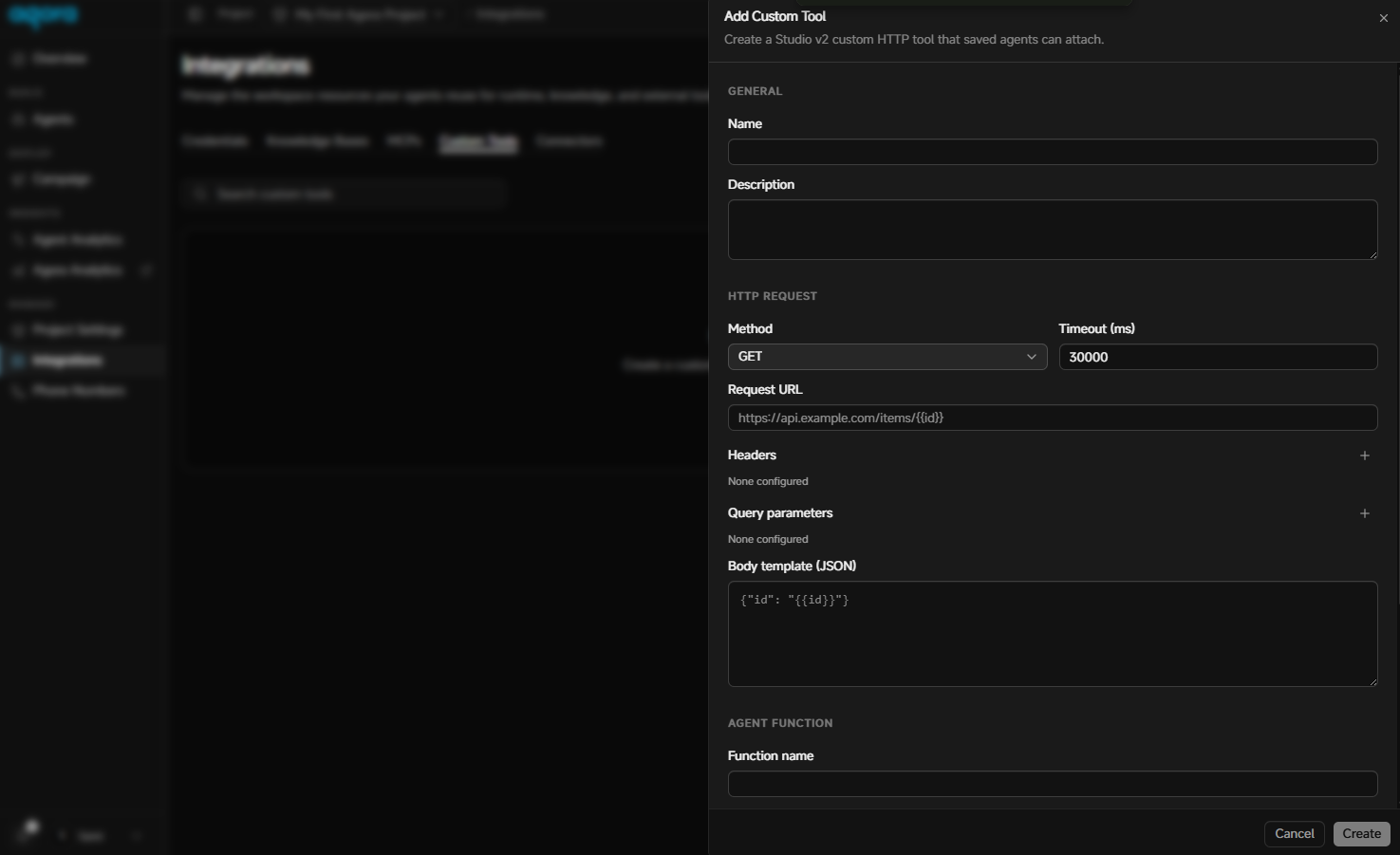

4. Fill in the tool settings in the New Custom HTTP Tool panel.

Configure the request

• Name (required): Display name for the tool.
• Description: Optional notes describing what the tool does.
• Method: GET, POST, PUT, PATCH, or DELETE. Defaults to GET.
• Timeout (ms): Maximum wait time for the request. Defaults to 30000.
• Request URL (required): Target endpoint. Supports placeholders such as https://api.example.com/items/{{id}}.

HTTP headers

Static headers for authentication and configuration.

• Sensitive header names such as Authorization, api-key, token, secret, and cookie are treated as secrets.
• Sensitive values are encrypted, and saved values display as *** in the UI.
• Put static secrets in headers, not in URL query parameters.

Query parameters

Query string values appended to the URL. You can use placeholders, for example:

status={{ticket_status}}
limit={{page_size}}

Configure function calling

This section tells the LLM when and how to call your tool.

• Function name (required): Runtime tool name. Use letters, numbers, and _. Must start with a letter or _.

• Function description (required): Explains when the agent should call the tool.

• Parameters (JSON Schema) (required): A JSON Schema object that defines the allowed input fields. For example:

  {
    "type": "object",
    "properties": {
      "order_id": { "type": "string" },
      "include_history": { "type": "boolean" }
    },
    "required": ["order_id"]
  }

• Body template (JSON): An optional JSON payload sent in the request body. Defaults to {}. For example:

  {
    "order_id": "{{order_id}}",
    "include_history": "{{include_history}}"
  }

Placeholder rules

Custom Tools support placeholders in:

• Request URL path
• HTTP headers
• Query parameters
• Body template

Rules:

• Placeholder names must match parameter names from Parameters (JSON Schema).
• Host names cannot contain placeholders.
• Unknown placeholders are rejected when you save the tool.
• Malformed placeholders such as {{ bad-name }} are rejected.

Test the tool

After saving, use the tool test action in Integrations to run a request with sample inputs.

Check that:

• The request reaches the correct endpoint.
• Auth headers work as expected.
• The response body contains only the data you want the agent to see.
• The timeout is long enough for normal responses.

Attach the tool to an agent

Creating a Custom Tool does not make it available to an agent automatically.

1. In the navigation sidebar, select Agents.
2. Select your agent from the list.
3. From the Action menu, select Edit Agent.
4. Go to the Actions tab.
5. Under Custom Tools, select Add Custom Tools.
6. Select one or more tools.
7. Save the agent.

After you attach the custom tool, the LLM can call the tool during test sessions and production conversations.

Prompting tips

Put usage guidance in your system prompt. For example:

Use `lookup_order` when the user asks about order status. Always confirm the order ID before calling the tool.

Troubleshooting

Next steps

• Manage integrations: Manage reusable resources for your workspace
• Customize your agent: Attach Custom Tools from the Actions tab
• Test your agent: Verify tool calling behavior end to end
