Import a number

Import phone numbers to use for inbound and outbound calls with your deployed agents. Currently, Agent Studio supports importing numbers from Twilio's Elastic SIP Trunk.

What is Elastic SIP Trunk?​

Elastic SIP Trunk is the connection layer between traditional phone networks and Studio. When a caller dials your phone number, their carrier routes the call over the public telephone network. Elastic SIP Trunk translates that call into a format Studio can process, and passes it to your configured agent.

The "elastic" part means the trunk scales automatically with call volume; the same configuration handles one call or thousands without any changes on your end.

Studio currently supports Elastic SIP Trunk integration with Twilio. Support for additional providers is planned.

Prerequisites​

  • An active Twilio account with Elastic SIP Trunk configured. See Set up SIP trunk.
  • A deployed agent in Agent Studio
  • A phone number configured in your Twilio SIP trunk
  • SIP domain and credentials from your Twilio account

Import a phone number​

To import a phone number from your Twilio SIP trunk:

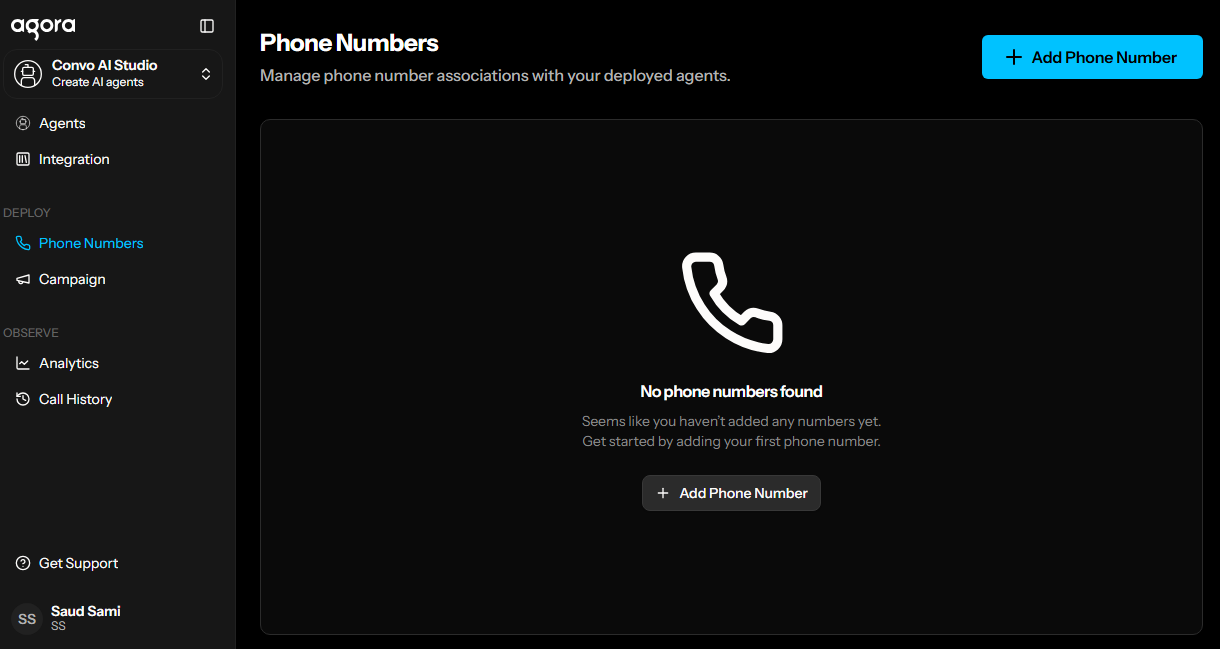

  1. In Agent Studio, select Phone Numbers from the sidebar.

    Import phone number

  2. Click Add Phone Number.

    Import phone number

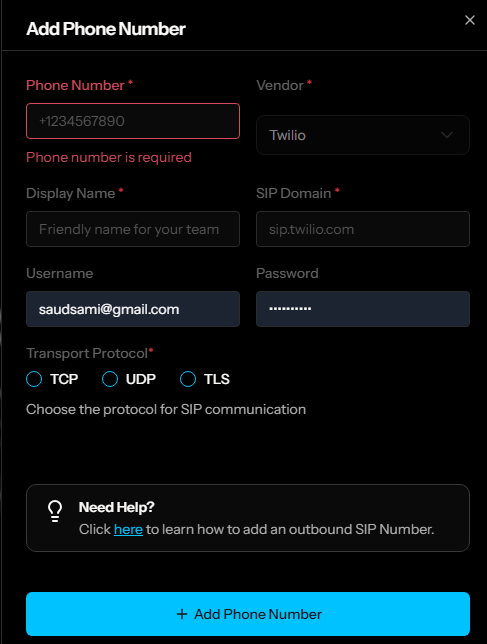

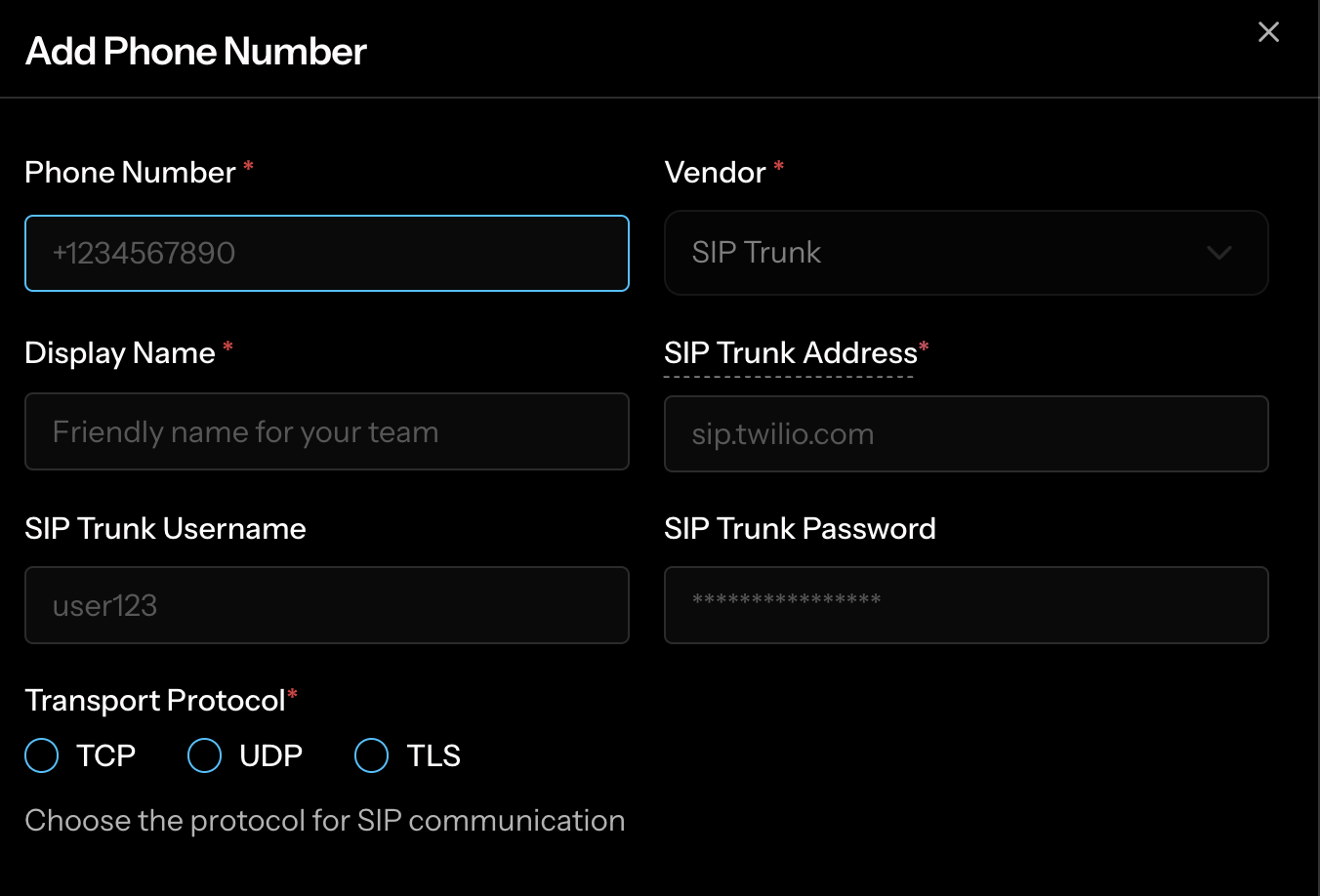

  3. Fill in the required information:

    • Phone Number: Enter the phone number in E.164 format (for example, +1234567890)
    • Vendor: Select Twilio (currently the only supported vendor)
    • Display Name: Enter a descriptive name to help you identify this number
    • SIP Domain: Enter your Twilio SIP domain
    • Username: Enter your Twilio SIP username.
    • Password: Enter your Twilio SIP password.
    • Transport Protocol: Select the protocol for SIP communication. Choose TLS if Secure Trunking is enabled in your Twilio SIP trunk, otherwise choose TCP or UDP.

  4. Click Add Phone Number to import the phone number.

Your imported phone number is now available for use in inbound and outbound calls.

Manage imported numbers​

Edit a phone number​

To update the configuration of an imported phone number:

  1. In Agent Studio, select Phone Numbers from the sidebar.

    Import phone number

  2. Locate the phone number you want to edit.

  3. From the action menu, select Edit.

  4. Update the phone number details as needed.

  5. Click Save to apply your changes.

Delete a phone number​

To remove an imported phone number:

  1. In Agent Studio, select Phone Numbers from the sidebar.
  2. Locate the phone number you want to delete.
  3. From the action menu, select Delete.
  4. Confirm the deletion.
caution

Deleting a phone number removes it from all agents and campaigns that use it. Ensure no active inbound agents or outbound campaigns depend on this number before deleting.

Next steps​
