Configure device network

The R1 kit includes an Android app in the app folder for configuring device network access through Bluetooth Low Energy (BLE). The app provides a simple interface for connecting your R1 device to Wi-Fi.

This app is built using Agora's Bluetooth configuration library.

Connect your device to Wi-Fi

1. Grant the required permissions when prompted by the app.
2. Verify your current Wi-Fi network information.
3. Enter your Wi-Fi password.
4. Scan for and select your target Bluetooth device.
5. Click Connect to establish a connection with the device.
6. After the connection succeeds, click Configure Network to send the Wi-Fi credentials to the device.
7. After the network configuration completes, click Disconnect to end the Bluetooth connection.

Set up network access

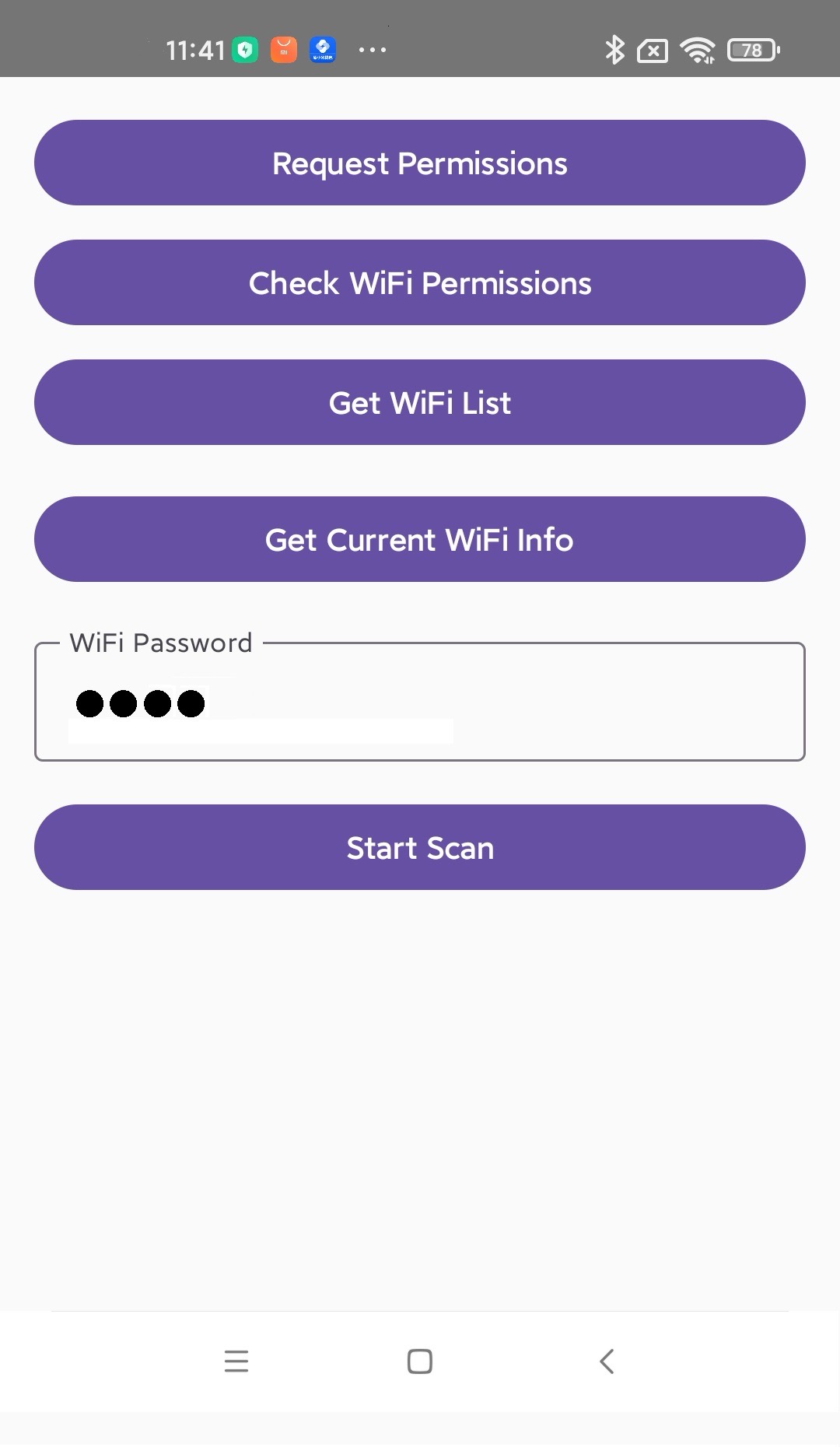

1. Request permissions. When you first open the app, grant the required permissions:

   1. Tap Request Permissions. The app requests Bluetooth and location permissions needed for scanning and connecting to Bluetooth devices.
   2. Tap Allow in the system permission dialog.

2. Verify Wi-Fi permissions. Tap Check Wi-Fi Permissions. The app checks whether it has the necessary Wi-Fi permissions and displays the result.

3. Get Wi-Fi information. Tap Get Current Wi-Fi Information. The app retrieves and displays your current Wi-Fi network name (SSID) in a card below the button.

4. Enter Wi-Fi password. Enter your Wi-Fi network password in the password field. The device uses this password to connect to your Wi-Fi network.

5. Scan for Bluetooth devices:

   1. Tap Start Scan. The app scans for nearby Bluetooth devices. The button text changes to Stop Scanning during the scan.
   2. Scanned devices appear in the list below.
   3. Tap Stop Scanning to end the scan.

6. Connect to your device. Each device card in the list displays:

   • Device name
   • MAC address
   • Signal strength (RSSI)
   • Connect: Establishes a Bluetooth connection with the device
   • Configure Network: Sends Wi-Fi credentials to the device
   • Disconnect: Ends the Bluetooth connection

   If network configuration fails, reconnect the device or restart the app.

Troubleshooting

If you encounter issues during network configuration, try the following solutions:

• Cannot scan for devices: Verify that Bluetooth and location services are enabled on your Android device.
• Connection fails: Rescan for the device or restart the R1 device.
• Network configuration fails: Verify that you entered the correct Wi-Fi password.
