From v2.3.0, Agora provides a setVideoEncoderConfiguration method for users to set the video profile. This method includes an orientationMode parameter for users to set the video orientation mode.
This page shows you how to set the video orientation mode in various scenarios.
Video Rotation
The following figure shows how the Agora SDK captures, processes, and outputs videos.
Video rotation involves the video capturer and the video player.
Video Capturer
The video capturer captures the video and outputs the video information, including the:
Video frame.
Relative position of the video and the status bar.
Video Player
The video player renders the received video information.
setVideoEncoderConfiguration
After you have joined the Agora channel, use the setVideoEncoderConfiguration method to set your preferred video profile.

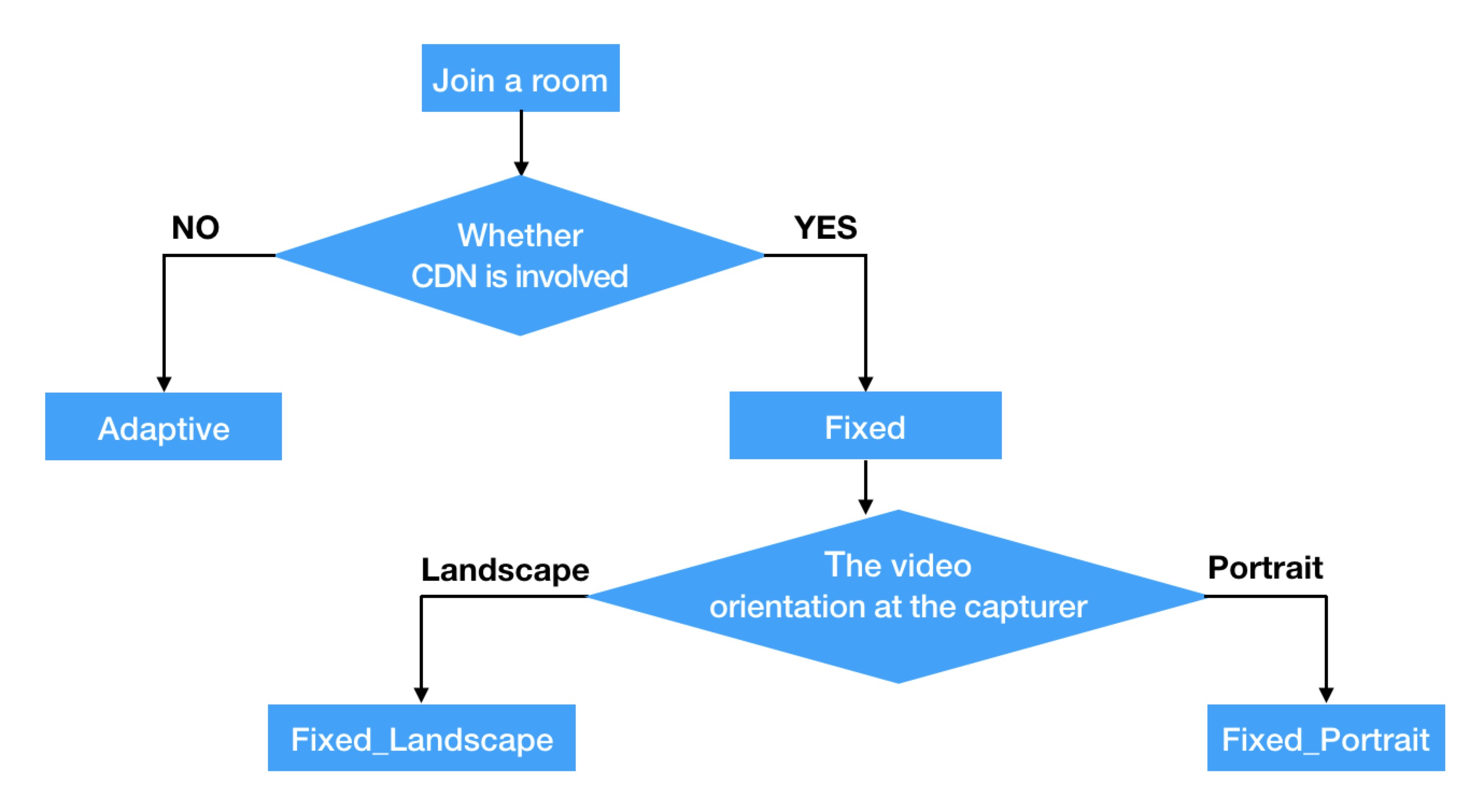

public abstract int setVideoEncoderConfiguration(VideoEncoderConfiguration config);The VideoEncoderConfiguration class includes an orientationMode parameter to set the rotational mode of your video. Agora recommends using the following flowchart to select your video orientation mode (applicable to both Communication and Live Broadcast scenarios).
Orientation Mode
The orientationMode parameter provides three modes, ADAPTIVE, FIXED_LANDSCAPE, and FIXED_PORTRAIT for different user needs. The relative position of the video and the status bar on the video capturer and the player remain the same for all modes.
ADAPTIVE
In the adaptive mode, the video capturer captures the video frame and sends the video together with its relative position to the status bar. The player notes the relative position and renders the video frame. No video cropping occurs in the adaptive mode.
The following figures show the video orientations at the video capturer and player when a rear camera is used as the video capturer. Note that the video orientation differs according to the UI lock of your app.
UI lock (or UI unlock with the app disabling the screen auto-rotation):
The relative position of the status bar remains the same as the screen and not according to the phone tilt (for example in WeChat). Therefore, the relative position of the video and the screen remains the same for the video capturer and the player.
For a landscape capturer:
For a portrait capturer:
UI unlock with the app enabling the screen auto-rotation:
The status bar of the app remains horizontal, regardless of the orientation of the screen (for example in Facetime). Therefore, the relative position of the video and the phone tilt remains the same for the video capturer and the player.
For a landscape capturer:
For a portrait capturer:
FIXED_LANDSCAPE
In the Fixed_Landscape mode, the video capturer sends the video in the landscape orientation relative to the status bar and video cropping may be necessary. The player renders the received video frame directly without rotating the video.
In this mode, both sides of the captured video will be cropped in the direction perpendicular to the status bar.
The following figures show the video orientations at the video capturer and the player when a rear camera is used as the video capturer.
The captured video in the landscape mode (video cropping is not needed):
The captured video in the portrait mode (video cropping is needed):
FIXED_PORTRAIT
In the Fixed_Portrait mode, the video capturer sends out the video in the portrait orientation relative to the status bar and video cropping may be necessary. The player renders the received video frame directly without rotating the video.
In this mode, both sides of the captured video will be cropped in the direction parallel to the status bar.
The following figures show the video orientations at the video capturer and the player when a rear camera is used as the video capturer.
The captured video in the portrait mode (video cropping is not needed):
The captured video in the landscape mode (video cropping is needed):
See the description of the setVideoEncoderConfiguration method in Video Call API for more information.
