Section 1: Integration

Step 1: Download the Agora Signaling SDK.

Download the Agora Signaling SDK.

Step 2: Unpack the downloaded SDK and save the files in the libs folder to the corresponding folder of your project.

The library provided by the Agora Signaling SDK is a FAT image,which includes versions for the 32/64-bit emulator and the 32/64-bit real device.

Step 3: Add the required framework.

To add the required library:

  1. Choose the current Target.

  2. In Xcode, set the search path of the framework to the Agora SDK lib folder.

  3. Click Building Phases to add the required library.

../_images/xcode_4.png

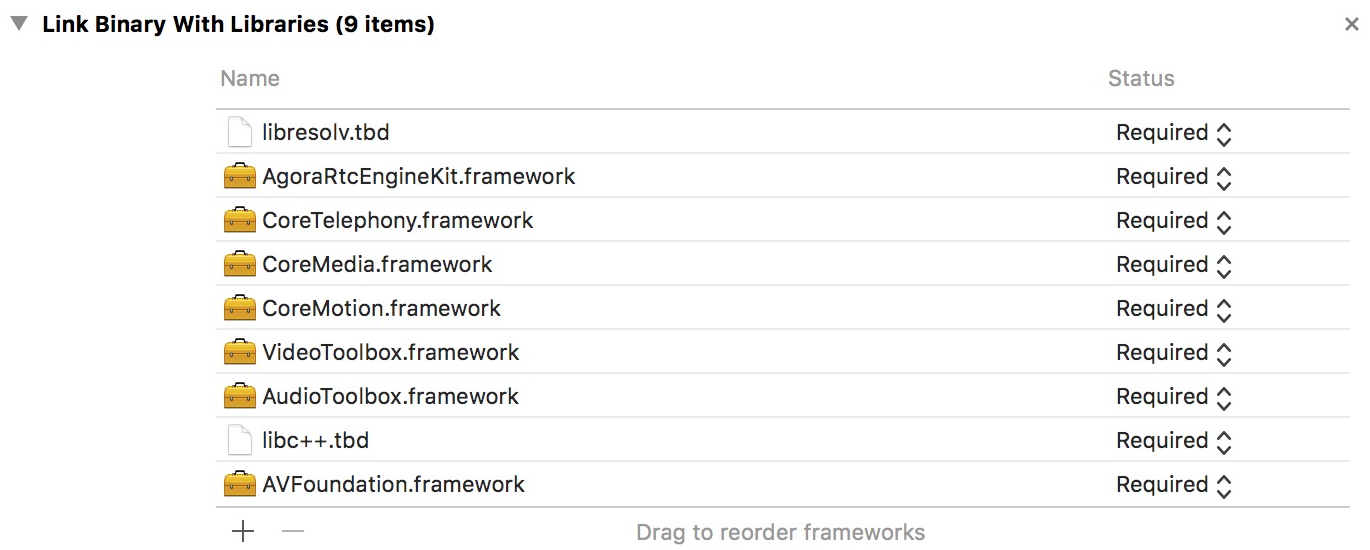

  1. Click Link Binary with Libraries > + to add the following libraries.
Quickstart Guide/ios_project_3.png

AgoraSigKit.framework is in the libs folder of your project. Click + > Add Other… to enter the project folder to add the libraries.


../_images/xcode_5.png

Step 4: Miscellaneous settings.

  1. Choose the current Target.

  2. Disable bitcode:

    ../_images/bitcode.png

Step 5: Get an App ID and an App Certificate.

  1. For more information see App ID.

  2. Put your AppID and App Certificate into “Agora-Signaling-Tutorial-macOS-Swift/Agora-Signaling-Tutorial/MainPage/KeyCenter.swift”.

let AppId: String = "YOUR APPID"
let AppCertificate: String = "YOUR CERTIFICATE"

Step 6: Generate a token.

Agora recommends generating a token on the server. For more information about generating a token, see: SignalingToken.

Step 7: Fill in the developer signature.

Use XCode to open Agora-Signaling-Tutorial.xcodeproj and fill in a valid developer signature.

You are now all set and can call the APIs provided by the Agora Signaling SDK.

Section 2: Scenario-based Code Snippets

This section provides code snippets related to the following two scenarios:

  • Sending point-to-point messages

  • Sending channel messages

Sending a Point-to-point Message

Sender

/* Initialize the SDK. */
let AgoraSignalKit : AgoraAPI = AgoraAPI.getInstanceWithoutMedia(KeyCenter.AppId)
/* Login to the Agora Signaling system. */
AgoraSignalKit.login2(KeyCenter.AppId, account: account, token: token, uid: 0, deviceID: nil, retry_time_in_s: 60, retry_count: 5)
/* Set the onLoginSuccess callback. */
AgoraSignalKit.onLoginSuccess = { (uid,fd) -> () in
      /* Your code. */
}
/* Set the onLoginFailed callback. */
AgoraSignalKit.onLoginFailed = {(ecode) -> () in
      /* Your code. */
}
/* Send a point-to-point message. */
AgoraSignalKit.messageInstantSend(account, uid: 0, msg: message, msgID: msgID)
/* Set the onMessageSendSuccess callback. */
AgoraSignalKit.onMessageSendSuccess = { (messageID) -> () in
     /* Your code. */
}
/* Set the onMessageSendError callback. */
AgoraSignalKit.onMessageSendError = { (messageID, ecode) -> () in
     /* Your code. */
}
/* Logout of the Agora Signaling system. */
AgoraSignalKit.logout()

Receiver

/* Initialize the Signaling SDK. */
let AgoraSignalKit : AgoraAPI = AgoraAPI.getInstanceWithoutMedia(KeyCenter.AppId)
/* Login to the Agora Signaling system. */
AgoraSignalKit.login2(KeyCenter.AppId, account: account, token: token, uid: 0, deviceID: nil, retry_time_in_s: 60, retry_count: 5)
/* Set the onLoginSuccess callback. */
AgoraSignalKit.onLoginSuccess = { (uid,fd) -> () in
      /* Your code. */
}
/* Set the onLoginFailed callback. */
AgoraSignalKit.onLoginFailed = {(ecode) -> () in
      /* Your code. */
}
 /* Set the onMessageInstantReceive callback. */
 AgoraSignalKit.onMessageInstantReceive = { (account, uid, msg) -> () in
      /* Your code. */
}
/* Logout of the Agora Signaling system. */
AgoraSignalKit.logout()

Sending a Channel Message

Sender

/* Initialize the Signaling SDK. */
let AgoraSignalKit : AgoraAPI = AgoraAPI.getInstanceWithoutMedia(KeyCenter.AppId)
/* Login to the Agora Signaling system. */
AgoraSignalKit.login2(KeyCenter.AppId, account: account, token: token, uid: 0, deviceID: nil, retry_time_in_s: 60, retry_count: 5)
/* Set the onLoginSuccess callback. */
AgoraSignalKit.onLoginSuccess = { (uid,fd) -> () in
      /* Your code. */
}
/* Set the onLoginFailed callback. */
AgoraSignalKit.onLoginFailed = {(ecode) -> () in
      /* Your code. */
}
/* Join a channel. */
AgoraSignalKit.channelJoin(channelName)
/* Set the onChannelJoined callback. */
AgoraSignalKit.onChannelJoined = { (channelID) -> () in
     /* Your code. */
}
/* Set the onChannelJoinFailed callback. */
AgoraSignalKit.onChannelJoinFailed = { (channelID, ecode) -> () in
      /* Your code. */
}
/* Send a channel message. */
AgoraSignalKit.messageChannelSend(channelName, msg: message, msgID: msgID)
/* Set the onMessageSendSuccess callback. */
AgoraSignalKit.onMessageSendSuccess = { (messageID) -> () in
      /* Your code. */
}
/* Set the onMessageSendError callback. */
AgoraSignalKit.onMessageSendError = { (messageID, ecode) -> () in
      /* Your code. */
}
/* Leave the channel. */
AgoraSignalKit.channelLeave(channelName)
/* Set the onChannelLeaved callback. */
AgoraSignalKit.onChannelLeaved = { (channelID, ecode) -> () in
      /* Your code. */
}
/* Logout of the Agora Signaling system. */
AgoraSignalKit.logout()

Receiver

/* Initialize the Signaling SDK. */
let AgoraSignalKit : AgoraAPI = AgoraAPI.getInstanceWithoutMedia(KeyCenter.AppId)
/* Login to the Agora Signaling system. */
AgoraSignalKit.login2(KeyCenter.AppId, account: account, token: token, uid: 0, deviceID: nil, retry_time_in_s: 60, retry_count: 5)
/* Set the onLoginSuccess callback. */
AgoraSignalKit.onLoginSuccess = { (uid,fd) -> () in
      /* Your code. */
}
/* Set the onLoginFailed callback. */
AgoraSignalKit.onLoginFailed = {(ecode) -> () in
      /* Your code. */
}
/* Join a channel. */
AgoraSignalKit.channelJoin(channelName)
/* Set the onChannelJoined callback. */
AgoraSignalKit.onChannelJoined = { (channelID) -> () in
     /* Your code. */
}
/* Set the onChannelJoinFailed callback. */
AgoraSignalKit.onChannelJoinFailed = { (channelID, ecode) -> () in
      /* Your code. */
}
/* Set the onMessageChannelReceive callback. */
AgoraSignalKit.onMessageChannelReceive = { (channelID, account, uid, msg) -> () in
      /* Your code. */
}
/* Leave the channel. */
AgoraSignalKit.channelLeave(channelName)
/* Set the onChannelLeaved callback. */
AgoraSignalKit.onChannelLeaved = { (channelID, ecode) -> () in
      /* Your code. */
}
/* Leave the Agora Signaling system. */
AgoraSignalKit.logout()
