Step 1: Prepare the Environment

  1. Download the latest Unity video kit. See the following structure:

  1. Hardware and software requirements:

    • Unity 5.5 or later
    • Android Studio 2.0 or later
    • Two or more Android 4.0 or later devices with video and audio functions
  2. Getting an App ID.

  3. Before accessing Agora’s services, make sure that you have opened the ports and whitelisted the domains as specified in Firewall Requirements.

Step 2: Create a Project

  1. Open Unity to create a new project. Select 3D.

    ../_images/AMG-Video-Unity3D_23.png
  2. Add Game Object: Sphere and one Buttonin the default scene.

    ../_images/AMG-Video-Unity3D_24.png
  3. Save the scene to Assets/playscene.unity.

For information on how to use the Unity, refer to the offical Unity documentation.

Step 3: Add the SDK

  1. Open the root directory of your project and create:

    • Assets/Plugins/Android/AgoraRtcEngineKit.plugin/libs
    • Assets/Scripts
  2. Copy the libs/Scripts/AgoraGamingSDK from the downloaded SDK to the Assets/Scripts directory of your project.

  3. Copy the libs/agora-rtc-sdk.jar file in the SDK to Assets/Plugins/Android/AgoraRtcEngineKit.plugin/libs path of your project.

  4. Copy the Assets/Plugins/Android/mainTemplate.gradle file from the Sample in the SDK to the Assets/Plugins/Android path of your project.

  5. Copy the Assets/Plugins/Android/AgoraRtcEngineKit.plugin/AndroidManifest.xml file from the Sample in the SDK to the Assets/Plugins/Android/AgoraRtcEngineKit.plugin directory of your project.

  6. Copy the armeabi-v7a and x86 files in libs/Android of the SDK to the Assets/Plugins/Android/AgoraRtcEngineKit.plugin/libs path of your project.

Step 4: Add Permissions

Add the following permissions to the Assets/Plugins/Android/AgoraRtcEngineKit.plugin/AndroidManifest.xml file:

    <uses-permission android:name="android.permission.INTERNET" />
    <uses-permission android:name="android.permission.RECORD_AUDIO" />
    <uses-permission android:name="android.permission.CAMERA" />
    <uses-permission android:name="android.permission.BLUETOOTH" />
    <uses-permission android:name="android.permission.MODIFY_AUDIO_SETTINGS" />
    <uses-permission android:name="android.permission.ACCESS_NETWORK_STATE" />
    <uses-permission android:name="android.permission.ACCESS_WIFI_STATE" />
    <uses-permission android:name="android.permission.WAKE_LOCK" />
    <uses-permission android:name="android.permission.WRITE_EXTERNAL_STORAGE" />
    <uses-permission android:name="android.permission.READ_PHONE_STATE" />

Step 5: Prevent Code Obfuscation

Add the following line in the Assets/Plugins/Android/AgoraRtcEngineKit.plugin/project.properties to obfuscate the code:

-keep class io.agora.**{*;}

Step 6: Call the APIs

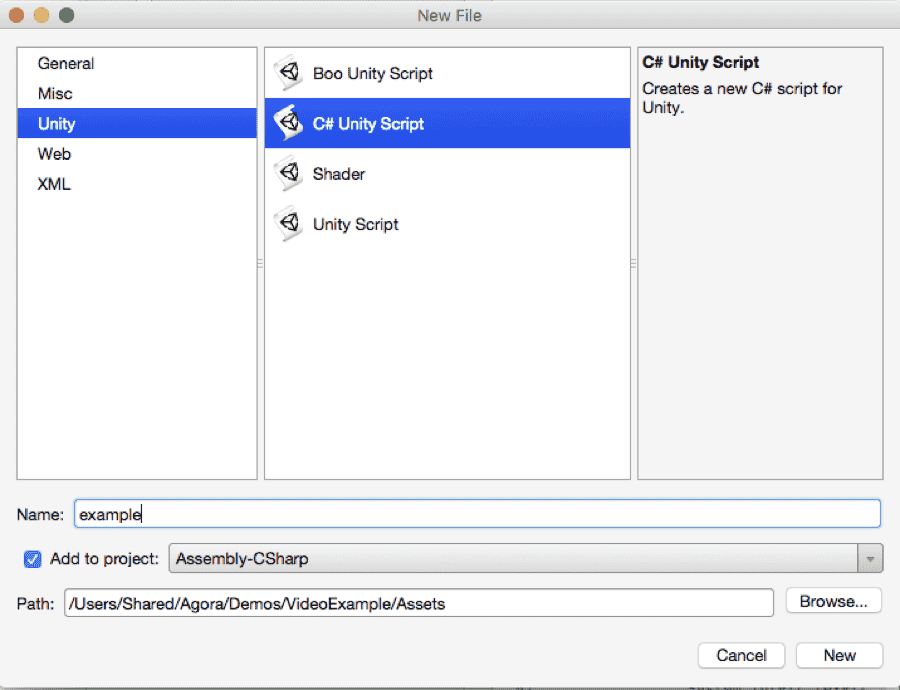

Follow Interactive Gaming API to call the APIs to implement the required functions. The following figure shows how to create a C# script example.cs:

../_images/AMG-Video-Unity3D_25.png
using UnityEngine;
using System.Collections;
using UnityEngine.UI;
using agora_gaming_rtc;

public class example : MonoBehaviour
{
    private IRtcEngine mRtcEngine;
    private string mVendorKey = <your app id>;

    // Use this for initialization
    void Start ()
    {
        GameObject g = GameObject.Find (“Join”);
        Text text = g.GetComponentInChildren<Text>(true);
        text.text = “Join”;
    }

    // Update is called once per frame
    void Update ()
    {

    }

    public void onButtonClicked() {
        GameObject g = GameObject.Find (“Join”);
        Text text = g.GetComponentInChildren<Text>(true);
        if (ReferenceEquals (mRtcEngine, null)) {
            startCall ();
            text.text = “Leave”;
        } else {
            endCall ();
            text.text = “Join”;
        }
    }

    void startCall()
    {
        // init engine
        mRtcEngine = IRtcEngine.getEngine (mVendorKey);
        // enable log
        mRtcEngine.SetLogFilter (LOG_FILTER.DEBUG | LOG_FILTER.INFO | LOG_FILTER.WARNING | LOG_FILTER.ERROR | LOG_FILTER.CRITICAL);

        // set callbacks (optional)
        mRtcEngine.OnJoinChannelSuccess = onJoinChannelSuccess;
        mRtcEngine.OnUserJoined = onUserJoined;
        mRtcEngine.OnUserOffline = onUserOffline;

        // enable video
        mRtcEngine.EnableVideo();
        // allow camera output callback
        mRtcEngine.EnableVideoObserver();

        // join channel
        mRtcEngine.JoinChannel(“exampleChannel”, null, 0);
    }

    void endCall()
    {
        // leave channel
        mRtcEngine.LeaveChannel();
        // deregister video frame observers in native-c code
        mRtcEngine.DisableVideoObserver();

        IRtcEngine.Destroy ();
        mRtcEngine = null;
    }

    // Callbacks
    private void onJoinChannelSuccess (string channelName, uint uid, int elapsed)
    {
        Debug.Log (“JoinChannelSuccessHandler: uid = “ + uid);
    }

    // When a remote user joined, this delegate will be called. Typically
    // create a GameObject to render video on it
    private void onUserJoined(uint uid, int elapsed)
    {
        Debug.Log (“onUserJoined: uid = “ + uid);
        // this is called in the main thread

        // find a game object to render the video stream from ‘uid’
        GameObject go = GameObject.Find (uid.ToString ());
        if (!ReferenceEquals (go, null)) {
            return; // reuse
        }

        // create a GameObject and assign it to this new user
        go = GameObject.CreatePrimitive (PrimitiveType.Plane);
        if (!ReferenceEquals (go, null)) {
            go.name = uid.ToString ();

            // configure videoSurface
            VideoSurface o = go.AddComponent<VideoSurface> ();
            o.SetForUser (uid);
            o.mAdjustTransfrom += onTransformDelegate;
            o.SetEnable (true);
            o.transform.Rotate (-90.0f, 0.0f, 0.0f);
            float r = Random.Range (-5.0f, 5.0f);
            o.transform.position = new Vector3 (0f, r, 0f);
            o.transform.localScale = new Vector3 (0.5f, 0.5f, 1.0f);
        }
    }

    // When a remote user is offline, this delegate will be called. Typically
    // delete the GameObject for this user
    private void onUserOffline(uint uid, USER_OFFLINE_REASON reason)
    {
        // remove the video stream
        Debug.Log (“onUserOffline: uid = “ + uid);
        // this is called in the main thread
        GameObject go = GameObject.Find (uid.ToString());
        if (!ReferenceEquals (go, null)) {
            Destroy (go);
        }
    }

    // Delegate: Adjust the transform for the game object ‘objName’ connected with the user ‘uid’
    // You can save information for ‘uid’ (e.g. which GameObject is attached)
    private void onTransformDelegate (uint uid, string objName, ref Transform transform)
    {
        if (uid == 0) {
            transform.position = new Vector3 (0f, 2f, 0f);
            transform.localScale = new Vector3 (2.0f, 2.0f, 1.0f);
            transform.Rotate (0f, 1f, 0f);
        } else {
            transform.Rotate (0.0f, 1.0f, 0.0f);
        }
    }
}

Step 7: Set the GameObject Script File

  1. Click Join and select example.cs.

  2. Sphere: Select VideoSurface.cs.

  3. Connect your Android devices.

Step 8: Compile and Install

  1. Select File> Build Settings…, and the Build Settings dialog box pops up.

  2. Open playscene and click Add Open Scenes to load the playscene to the build.

  3. Select the platform as Android and set the Build System as Internal:

  1. Click Player Settings…, and open the Other Settings:

    • Other Settings/Rendering/Auto Graphics API: False
    • Delete OpenGLES3 and Vulkan
    • Ensure that you keep OpenGLES2 which applies for video functions
    • Ensure that Multithreaded Rendering is set to False
  2. Click Save to save the settings.

  3. Click Build to build the app.

Step 9: Run the Application

To demonstrate the video for gaming functions, you will need two or more Android devices.

Click Join on both devices to join a channel.

../_images/AMG-Video-Unity3D_20.png

You can now use video for gaming. If there is no video or voice, check the following:

  • If the App ID is set correctly.
  • If the network is in good condition.
  • If the permissions of network and camera are authorized.
